220V Music Tesla Coil Driver Board with 20m Arc Discharge for Science and Display Use

This SSTC (Solid State Tesla Coil) driver board is a complete electronic unit designed to safely generate high-voltage, music-synchronised electrical arcs for educational, demonstration, and visual display purposes. Its primary advantage is a simplified setup that operates directly from a standard 220V AC mains socket, removing the need for a separate earth ground connection or multiple power supplies. With an impressive maximum arc discharge distance of 20 metres and a compact form factor, it serves as a practical tool for physics teachers, science enthusiasts, and creators of atmospheric installations. The unit incorporates specific safety technologies, including an arc extinguishing isolation device, and comes with all necessary cables and a controller for immediate use out of the box.

Features and Construction

The driver board is engineered as a self-contained power and control unit for a Tesla coil system. Its construction focuses on delivering high-voltage performance while integrating key user-friendly and safety features into a relatively portable package.

Material and Build

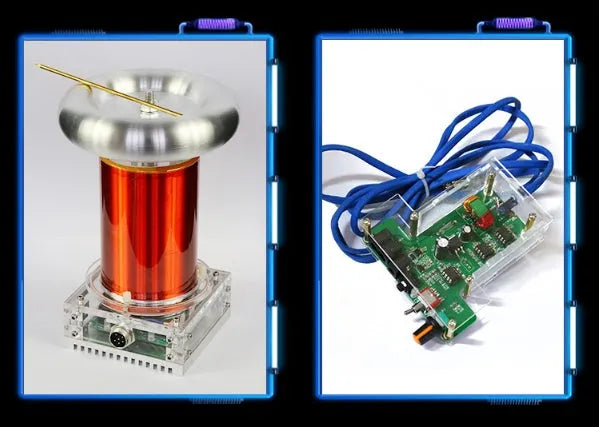

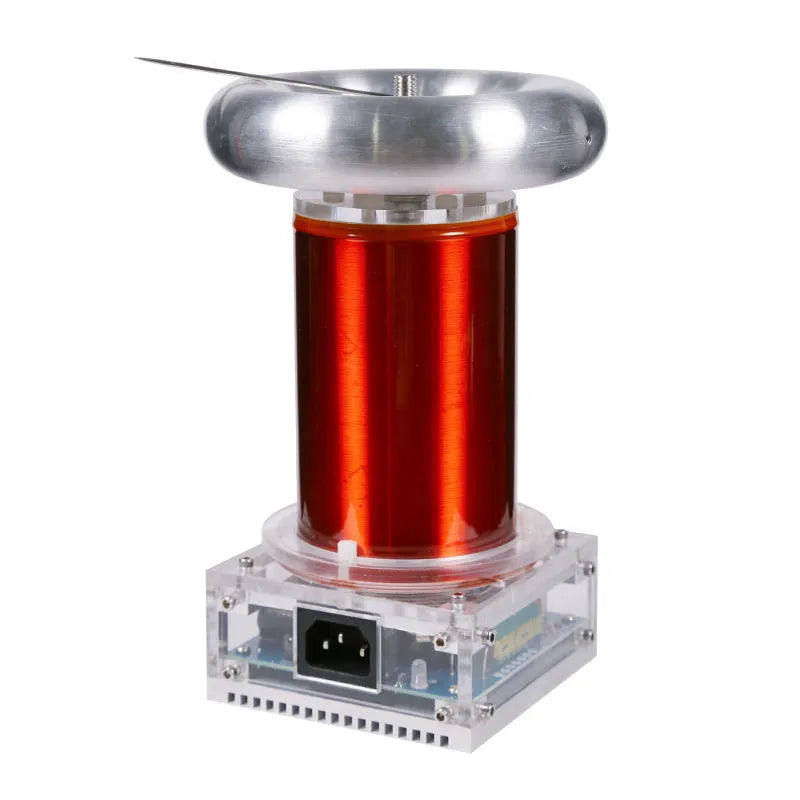

The core unit is built around a driver board housed within a sturdy chassis, utilising standard electronic components and wiring suitable for high-voltage applications. A key technical feature is the use of coaxial cable for clean signal transmission to the coil head. The design includes an integrated arc extinguishing isolation device, a safety component that helps manage and contain the electrical discharge. The overall build is described as strong and compact, contributing to its ease of transport and setup in different locations, from classrooms to exhibition spaces.

Size and Practical Fit

The driver board unit itself has precise dimensions of 100mm in width, 115mm in depth, and 205mm in height, with a total weight of 1 kilogram. This size makes it a manageable desktop or bench-top component. The system requires a safety perimeter during operation; a minimum viewing distance of 0.5 metres is mandated, with a full 1 metre being the recommended safe distance from the energised coil and its voltage equalisation ring. This consideration is essential for planning its placement in any environment.

Uses and Placement

The product's ability to create visually striking arcs that react to audio signals defines its application space. It bridges educational utility with captivating display technology.

Event or Professional Use

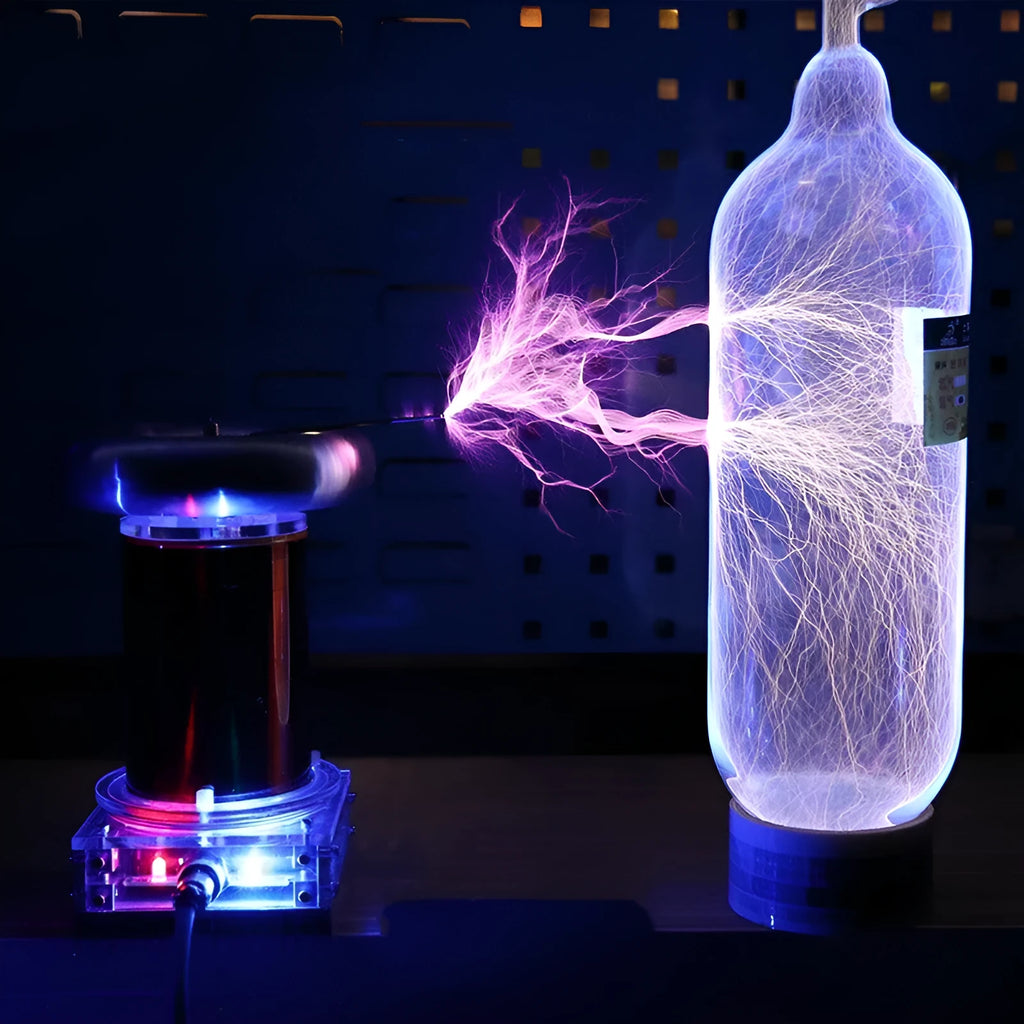

For professional or event settings, such as science museums, university open days, or special effects in controlled performance environments, the coil's 20-metre arc potential offers significant visual impact. The music synchronisation feature via the 3.5mm audio input allows arcs to dance in time with a soundtrack, creating a dynamic display. Its 220V direct power requirement means it can be set up quickly at most venues without specialist electrical work, provided standard sockets are available. Operational sessions should be limited to the advised 3-5 minutes for equipment longevity.

Everyday Home Use

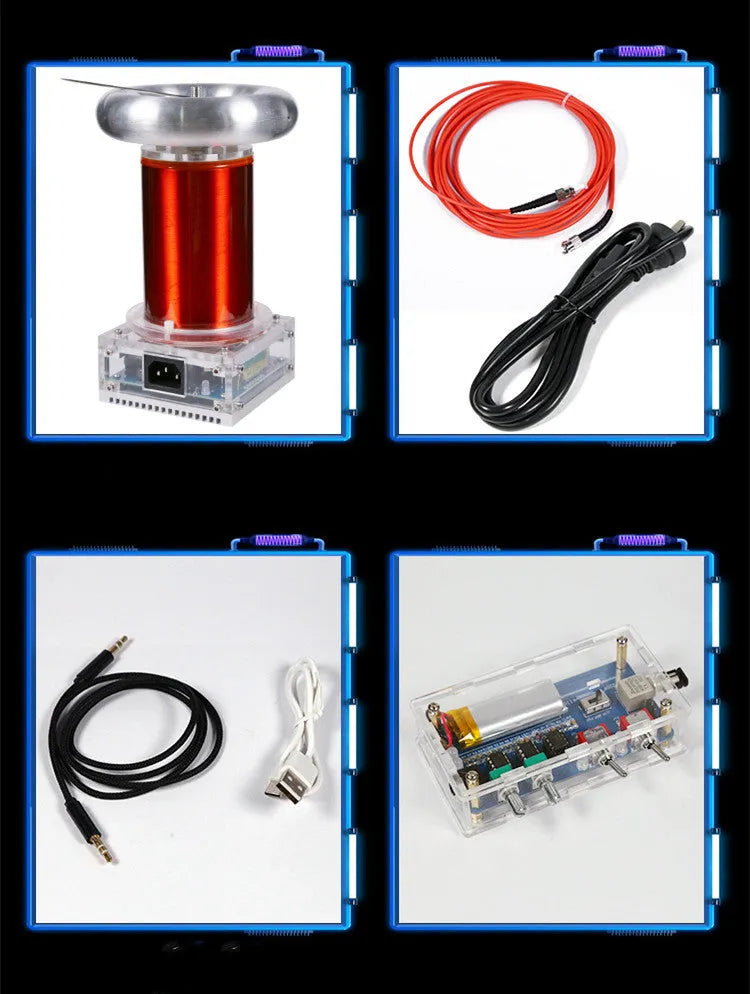

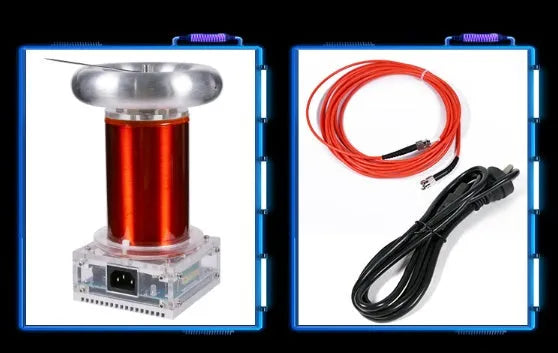

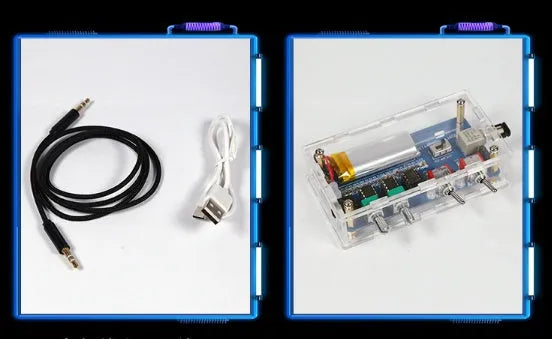

For the advanced hobbyist or educator working from a home lab or workshop, the coil serves as a powerful demonstration tool. The complete kit nature—including controller, optical fibre link, and all cables—facilitates storage and repeated setup. It is crucial for home use to strictly adhere to the safety guidelines: maintaining the 1-metre viewing distance, never touching the coil when energised, and following the specific start-up sequence for new models involving thimble placement. It is intended for supervised, short-duration use rather than continuous operation.

Benefits and Buying Value

The value of this driver board lies in its integration of high-performance capabilities with user-oriented design choices that reduce typical barriers to operating a Tesla coil.

Reuse and Low Maintenance

The product is designed for repeated use across multiple sessions or demonstrations. Its sturdy construction supports this, and the provided accessories are intended for ongoing use. Maintenance is primarily operational rather than physical; following the usage instructions—such as starting with the potentiometer at zero, limiting session times, and correctly connecting the optical fibre—constitutes the main care required to preserve the unit's function. No complex consumables or regular part replacements are indicated by the source material.

Why Choose This Product

This driver board unit is a suitable choice for users seeking a functional, ready-to-run Tesla coil system with significant arc discharge capability. Its standout differentiators are the 220V direct power supply that eliminates ground wire hassles, the 20-metre arc range, and the inclusion of safety-focused engineering like the arc extinguishing device. It provides a balance between impressive performance and measured safety controls, packaged with all necessary components. It is specifically configured as an Arc Extinguishing SSTC type, which informs its operational characteristics and safety profile.
