40A Brushed ESC for 1/16 and 1/18 Scale RC Models with Two-Way Climbing Modes

This 40-ampere brushed electronic speed controller is engineered for the specific demands of smaller-scale radio-controlled hobby vehicles. It delivers reliable, adjustable power management for 1/16th and 1/18th scale models, including popular categories like scooters, monster trucks (Bigfoot), and tracked climbing vehicles or tanks. By providing a substantial 40A continuous current in the forward direction, it ensures responsive throttle control and sufficient torque for challenging terrains and scaled obstacles. Its design focuses on compatibility with common small brushed motors and standard battery configurations, making it a practical upgrade or replacement part for enthusiasts.

Features and Construction

This speed controller is built around core specifications that match the requirements of compact RC models. Its construction prioritises stable current delivery and mode versatility to enhance the driving experience without overcomplicating the setup.

Material and Build

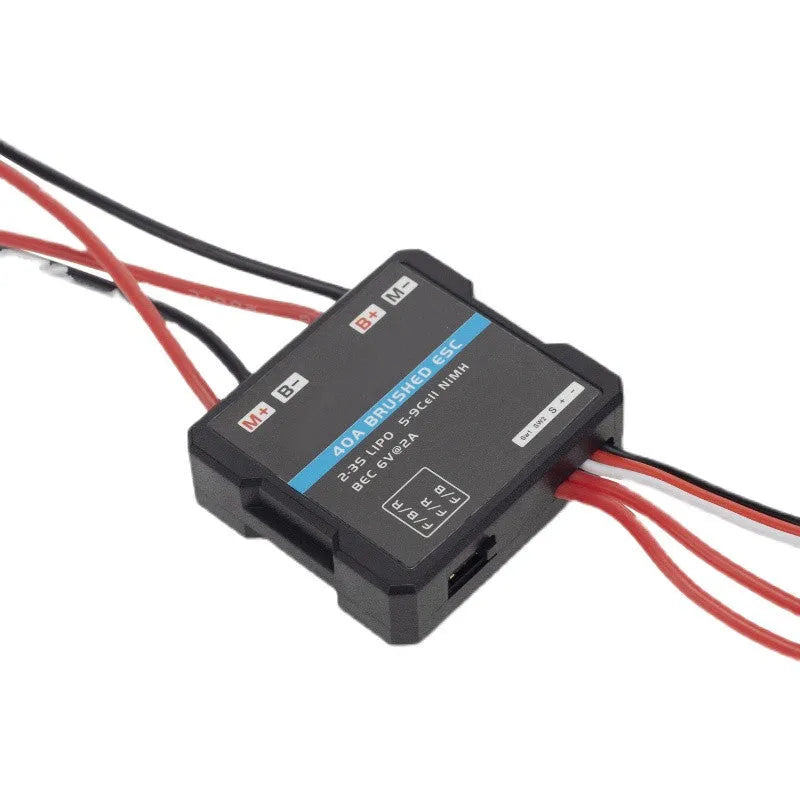

The unit is constructed from standard electronic components required for motor control, including MOSFETs for switching and a dedicated switched-mode BEC (Battery Eliminator Circuit). This BEC efficiently steps down the main battery voltage to provide a stable 3.1V or 6V output, which powers the vehicle's receiver and steering/throttle servos, eliminating the need for a separate battery pack. The internal layout is designed to manage the heat generated from the high current ratings, though adequate airflow around the unit remains essential for prolonged use.

Size and Practical Fit

While exact physical dimensions are not specified, the controller is described as suitable for 'small boat' and miniature applications, implying a compact form factor. This size is intended to fit within the often limited chassis space of 1/16 and 1/18 scale models. Its electrical specifications, particularly the support for motors under 30000 RPM at 7.2V, are tailored to the performance envelope of these smaller vehicles, ensuring compatibility without the risk of supplying excessive power that could damage standard 280, 370, or 380-size brushed motors.

Uses and Placement

The controller's operational modes directly support various RC driving activities, from casual bashing to more technical crawling. Its placement is within the electronic ecosystem of the model, between the battery, receiver, and motor.

Event or Professional Use

For organised events or enthusiasts seeking performance, the two-way and climbing modes offer enhanced control. The two-way mode provides standard forward and reverse operation, while the dedicated climbing mode is optimised for low-speed, high-torque control essential for scale trailing or overcoming obstacles. The high peak current ratings (160A forward, 80A reverse) help the motor handle sudden load increases without cutting out, which is crucial during competitive crawling or challenging course navigation.

Everyday Home Use

For everyday driving in gardens, parks, or indoor spaces, the controller provides smooth, adjustable throttle response. Its compatibility with common 2S LiPo or 5-6 cell NiMH batteries makes it easy to integrate into existing setups. Hobbyists can use it to upgrade older models for better performance or as a reliable replacement for a failed standard ESC, bringing a known set of capabilities and operational flexibility to their favourite small-scale vehicle.

Benefits and Buying Value

The value of this speed controller lies in its specified performance parameters and functional design, which address common needs in the small-scale RC segment without unnecessary complexity or cost.

Reuse and Low Maintenance

As a solid-state electronic component with no moving parts, the ESC requires minimal maintenance beyond ensuring clean connections and avoiding physical or moisture damage. Its robust current ratings provide headroom for standard motors, which can contribute to long-term reliability under normal operating conditions. The unit can be transferred between compatible models if needed, offering reuse value.

Why Choose This Product

This product is a suitable choice because it meets the clear technical requirements for a segment of the RC market: 40A continuous current, compatibility with specific motor sizes and battery types, and useful operational modes. It avoids being over-specified for larger models or under-powered for its intended use. For a modeller with a 1/16 or 1/18 scale brushed motor vehicle looking for reliable control with climbing capability, this ESC presents a focused solution supported by its stated specifications.
