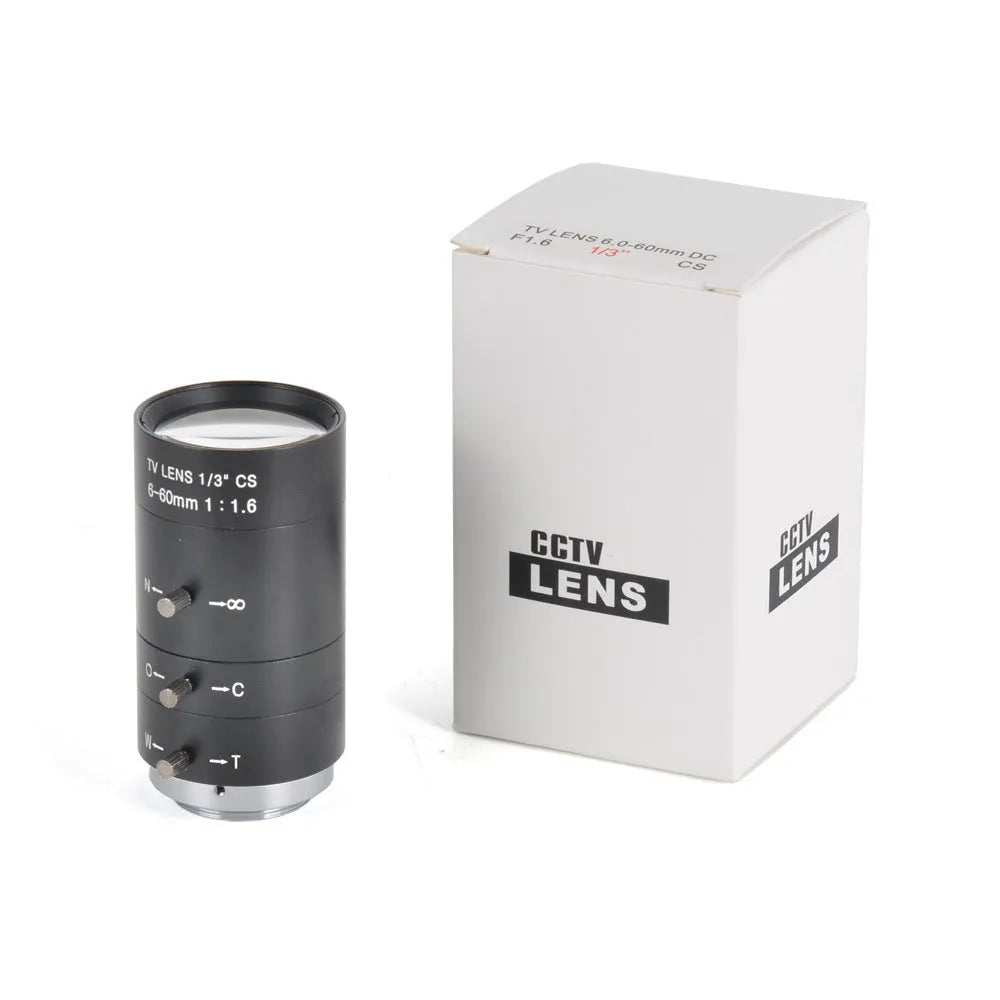

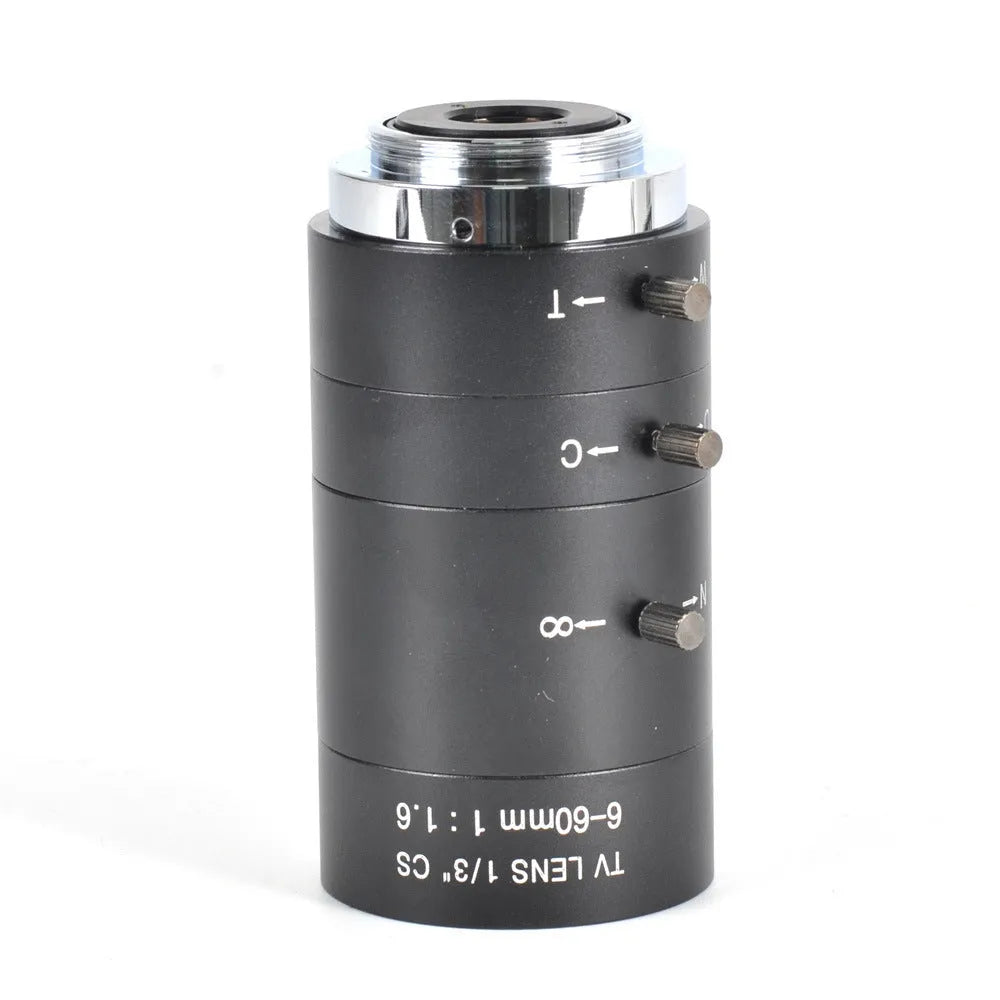

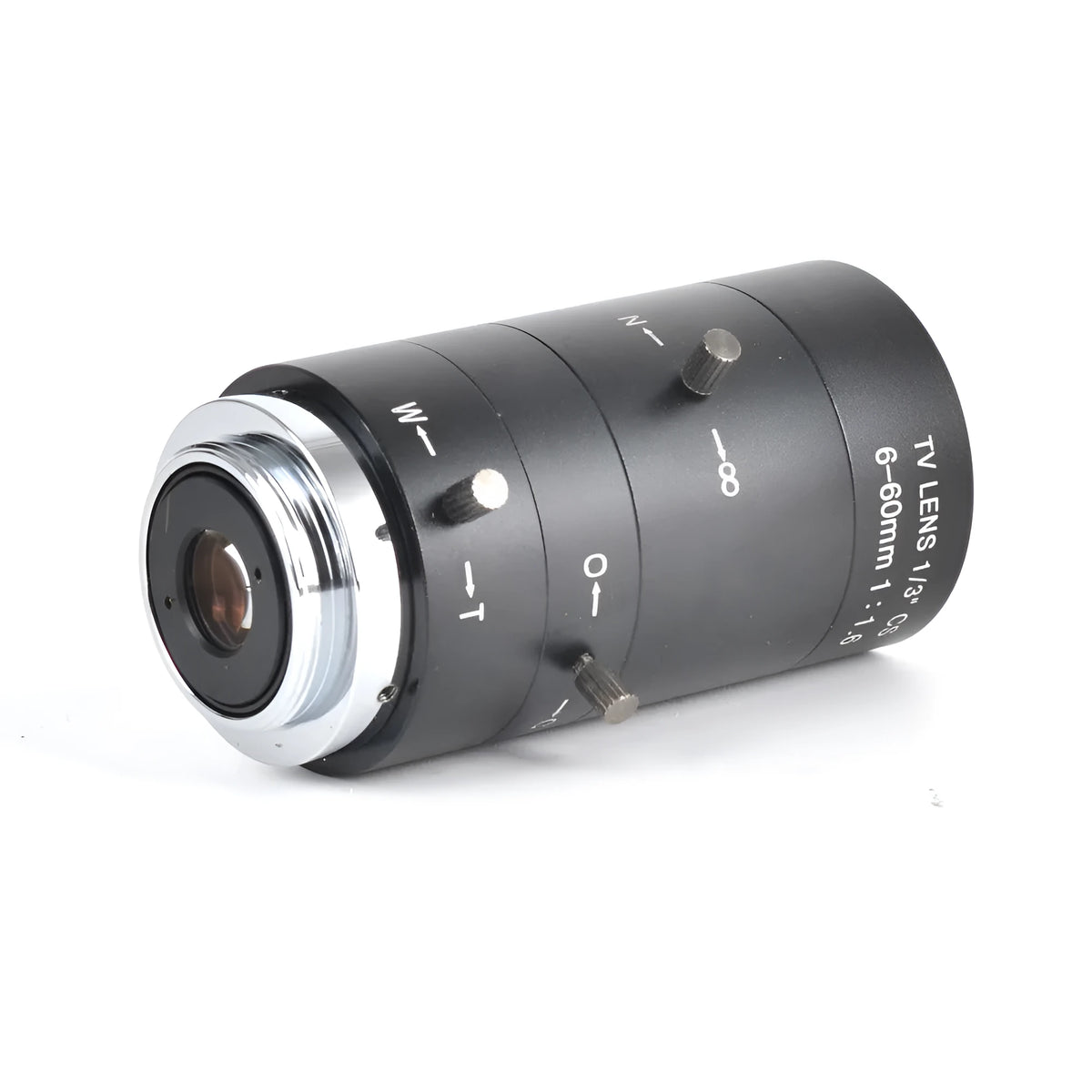

Manual Aperture CS Mount Camera Lens 6-60mm Focal Length for 1/3 Inch Sensors

This manual aperture CS mount camera lens provides a 6-60mm focal length range designed specifically for imaging systems using 1/3 inch format sensors. With completely manual operation of both focus and aperture settings, this lens offers direct control for applications where electronic control isn't available or preferred. The 1:1.6 aperture ratio allows for reasonable light gathering capability, while the compact dimensions and 118 gram weight make it suitable for space-constrained installations. The lens covers a field of view from 44 degrees at the 6mm setting down to 4.58 degrees at the 60mm telephoto position, offering versatility for both wide-angle and detailed viewing applications.

Technical Specifications and Performance

The lens delivers optical performance through its manual adjustment systems and precise engineering. With all measurements and specifications derived from the product data, this section details the concrete capabilities and limitations of the lens construction.

Focal Length and Field of View

The 6-60mm focal length range represents a 10x zoom ratio, allowing users to transition from wide 44-degree coverage to narrow 4.58-degree telephoto viewing. This versatility supports applications requiring both contextual wide shots and detailed close-up observation. The manual focus system works throughout this entire range, with a consistent minimum object distance of 0.3 metres maintained across focal lengths. The field of view narrowing as focal length increases follows standard optical principles without electronic compensation.

Aperture System and Light Control

The manual aperture operates at a fixed 1:1.6 ratio throughout the zoom range, meaning maximum light gathering remains constant. Users manually adjust the aperture ring to control depth of field and exposure, with no electronic automation available. This manual control suits environments where consistent lighting conditions exist or where deliberate exposure adjustment is preferred. The 1:1.6 ratio provides adequate light transmission for many indoor and well-lit outdoor applications without requiring extremely bright conditions.

Physical Dimensions and Mount Compatibility

Measuring 37mm in diameter, 68.7mm in length, and 34mm in height, the lens maintains compact proportions suitable for portable or space-limited installations. The 118 gram weight contributes to minimal load on mounting systems. The CS mount interface ensures mechanical compatibility with cameras designed for this standard, specifically those accommodating 1/3 inch image sensors. Users must verify their camera's sensor size matches this format for proper image coverage without vignetting.

Practical Applications and Setup

This manual lens serves specific use cases where its characteristics provide practical advantages. The following sections outline realistic deployment scenarios based on the available specifications and manual operation features.

Surveillance and Monitoring Systems

The 6-60mm zoom range combined with manual controls suits surveillance applications where operators need both wide area coverage and detailed observation of specific points. The manual aperture allows adjustment for changing light conditions throughout day-night cycles, while the 0.3m minimum focus distance enables clear viewing of nearby subjects. The CS mount compatibility with 1/3 inch sensors matches common security camera formats, making integration straightforward for existing systems requiring lens replacement or upgrade.

Industrial and Technical Imaging

For machine vision, inspection systems, or technical documentation, the manual controls provide precise adjustment without electronic latency or compatibility issues. The consistent 1:1.6 aperture maintains light levels during zoom operations, important for measurement consistency. The compact size fits within equipment enclosures, and the 118 gram weight minimizes strain on positioning mechanisms. The black finish reduces internal reflections within optical assemblies.

Educational and DIY Projects

The completely manual operation makes this lens suitable for photography or videography education, demonstrating fundamental principles of focus, aperture, and focal length without automation obscuring these concepts. The CS mount allows adaptation to various imaging systems with appropriate adapters, supporting experimental setups. The physical dimensions enable handheld use with supporting rigs, while the weight distribution supports balanced operation.

Maintenance and Operational Considerations

Proper handling and understanding of the lens limitations ensure optimal performance and longevity. These practical guidelines stem directly from the product's construction and manual operation characteristics.

Manual Control Handling

The aperture and focus rings require careful adjustment to avoid damage to the mechanical linkages. Users should operate these controls smoothly without forcing beyond their designed ranges. The manual nature means no electronic feedback confirms settings, requiring visual confirmation through the imaging system. Regular inspection of the adjustment mechanisms maintains smooth operation, with particular attention to the CS mount threading to prevent cross-threading during installation.

Environmental Compatibility

The lens construction supports standard indoor environments without special environmental sealing. Users should avoid exposing the lens to excessive moisture, dust, or temperature extremes that could affect the manual mechanisms. The optical elements benefit from occasional cleaning with appropriate lens tools to maintain image clarity, especially important given the fixed aperture ratio. The black finish provides some resistance to visible wear in regular handling scenarios.

System Integration Factors

When integrating with camera systems, verify the 1/3 inch sensor compatibility to ensure the image circle fully covers the sensor area. The manual controls require accessible positioning for adjustment during use. The 0.3m minimum focus distance should factor into installation planning for close-up applications. The compact dimensions allow fitting in confined spaces, but ensure adequate clearance for the 68.7mm length when mounted.
