Handheld digital oscilloscope with 40-70MHz bandwidth for automotive and electronic repair applications

This portable digital oscilloscope offers workshop technicians and field service engineers a compact solution for waveform analysis without requiring permanent bench space. Measuring just 198mm by 38mm by 96mm, the handheld design allows comfortable operation in tight engine bays or crowded workshop environments where traditional bench oscilloscopes prove impractical. The 40-70MHz bandwidth provides sufficient range for analysing common automotive sensor signals, including crankshaft and camshaft position sensors, ignition waveforms, and various communication bus signals. With a sampling rate of 250MSa/s, the unit captures sufficient detail for most automotive and general electronic diagnostic applications, while the 10000 waveforms per second capture rate helps identify intermittent faults that might escape detection with slower equipment.

Features and Construction

The oscilloscope combines portable convenience with essential diagnostic capabilities for field service work and workshop applications where space is limited. The complete accessory package reduces setup time and ensures compatibility with various test points.

Material and Build

Constructed as handheld electronic test equipment designed for workshop and field service environments, the oscilloscope comes with protective portable carrying bag. The housing materials provide appropriate durability for typical workshop use without making unsupported claims about specific impact resistance or environmental sealing. All electronic components meet the specifications required for the stated bandwidth and sampling capabilities.

Size and Practical Fit

With dimensions of 198mm length, 38mm width, and 96mm height, the compact form factor allows comfortable single-handed operation while leaving the other hand free for probe placement. The size makes it suitable for storage in toolboxes or vehicle glove compartments between jobs, and the lightweight construction reduces fatigue during extended diagnostic sessions. The portable design enables use in situations where bringing equipment to the vehicle proves more practical than bringing the vehicle to the equipment.

Uses and Placement

The oscilloscope serves multiple applications in automotive repair, electronic equipment servicing, and general electrical diagnostics where waveform analysis provides valuable troubleshooting information.

Event or Professional Use

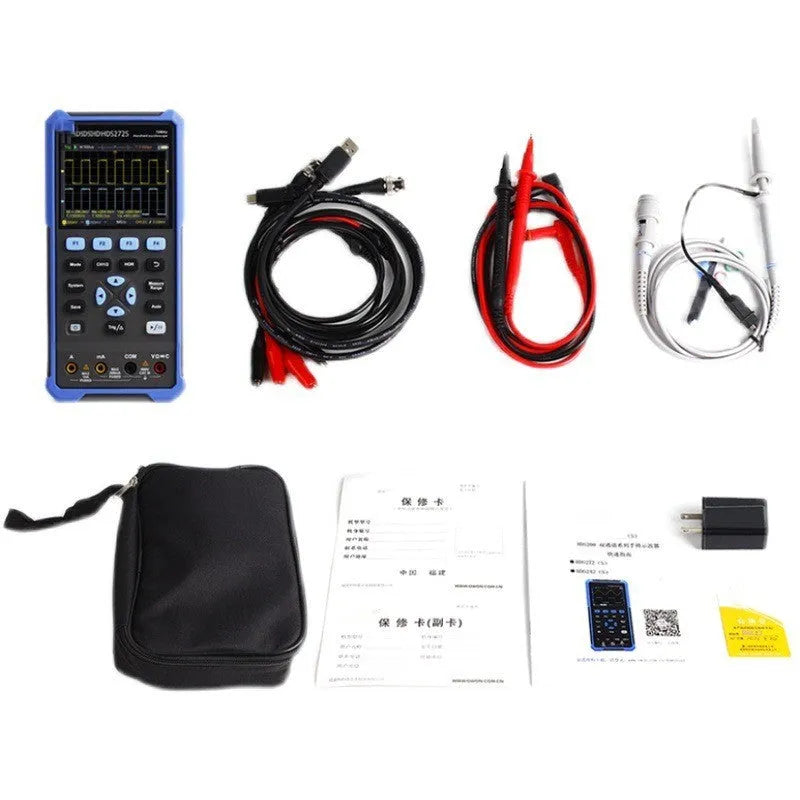

Automotive technicians benefit from the portable design when working on vehicles in pits at racing events or conducting roadside assistance calls where permanent workshop facilities are unavailable. The included BNC turn crocodile clip adaptor facilitates quick connections to various test points without requiring specialised connectors. The multimeter probe pen extends functionality beyond pure oscilloscope measurements, while the correction pen helps maintain measurement accuracy over time.

Everyday Home Use

For electronics hobbyists and DIY automotive enthusiasts, the oscilloscope provides accessible waveform analysis without the expense and space requirements of traditional bench models. The USB cable connection enables data transfer to computers for further analysis or record keeping. The comprehensive manual assists users in understanding basic oscilloscope operation and interpretation of common automotive and electronic signals.

Benefits and Buying Value

The complete package offers immediate functionality with all necessary accessories included, reducing additional purchases and ensuring compatibility between components.

Reuse and Low Maintenance

The oscilloscope probe pen, multimeter probe, and various adaptors enable repeated use across multiple diagnostic jobs without consumable replacement costs. The portable bag protects the unit during transport between locations, potentially extending its working life in mobile service environments. Simple storage requirements mean the equipment remains ready for use without extensive preparation or calibration before each job.

Why Choose This Product

The combination of 40-70MHz bandwidth, 250MSa/s sampling rate, and portable design addresses the specific needs of automotive technicians and field service engineers requiring waveform analysis capability away from fixed workshop benches. The included accessory set provides immediate functionality without additional purchases, while the compact dimensions ensure practical use in space-constrained environments common in automotive repair shops and field service situations.
