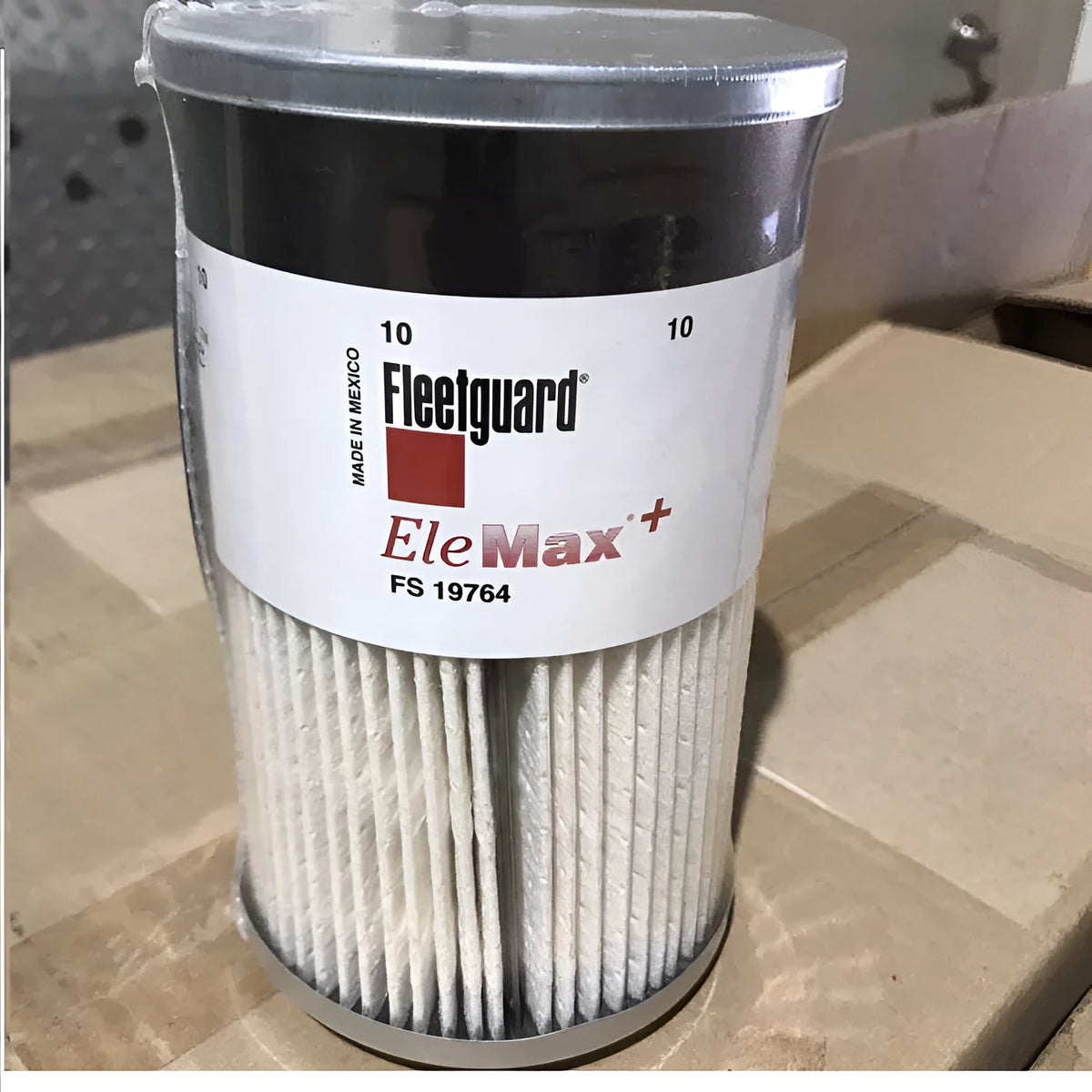

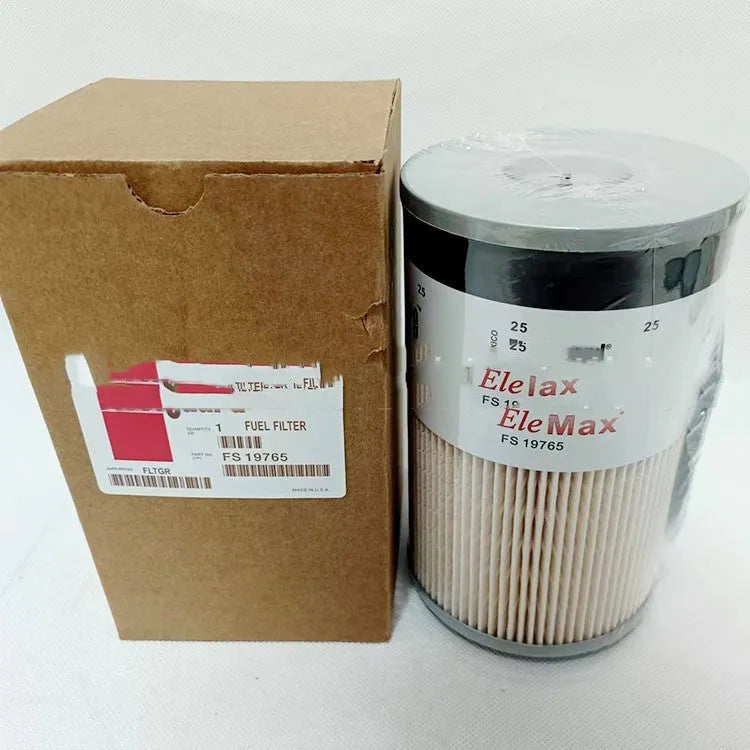

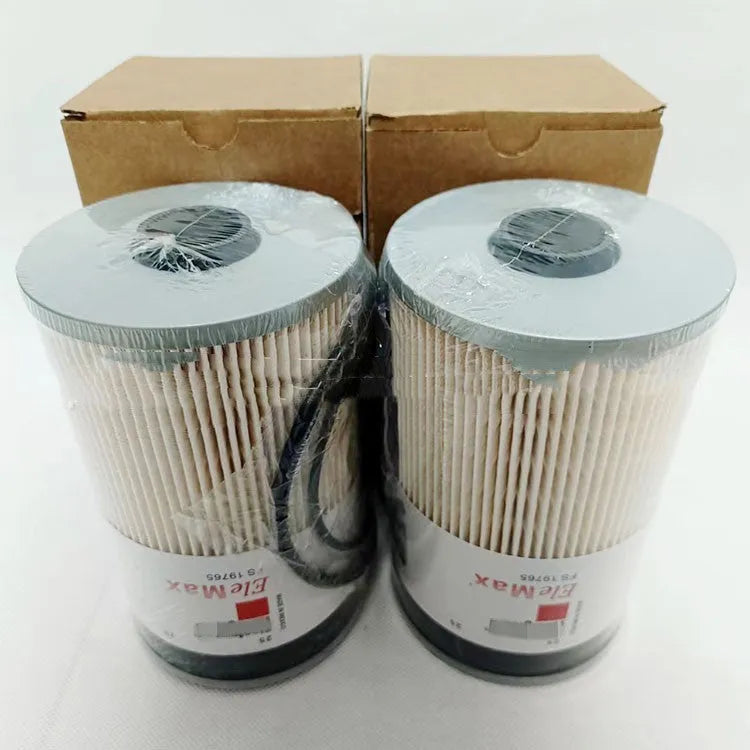

FS19764 Diesel Fuel Filter for Generator Sets with Folding Element and 10mm Connections

This FS19764 diesel fuel filter is a key maintenance component designed for generator sets and automotive starting systems, where clean fuel is essential for reliable operation. Its primary function is to remove solid impurities and contaminants from fuel oil before they reach sensitive injection and combustion components. The unit is constructed around a folding filter element made from a specialised filter paper that possesses stated resistance to acids, alkalis, and high temperatures, making it suitable for the demanding environment of diesel fuel. With precise dimensions including a 10mm inlet/outlet calibre and an operating envelope of up to 65°C and 0.3 MPa pressure difference, this filter is engineered for specific applications requiring consistent filtration performance.

Features and Construction

The FS19764 diesel fuel filter incorporates several design elements aimed at effective particulate removal. The core of its function lies in the materials and build quality specified for handling diesel fuel, which can contain corrosive elements and operate at elevated temperatures. The dimensions provided ensure it will physically integrate into the fuel lines of compatible systems, a critical factor for installation and performance.

Material and Build

The filter's efficacy is based on its folding filter element. This design increases the available filtration surface area within the cartridge's housing compared to simpler element types, potentially allowing for greater dirt-holding capacity and extended service intervals under similar conditions. The filter paper itself is described as having acid resistance, alkali resistance, and high temperature resistance. These are practical material properties that help the paper maintain its structural integrity and filtration efficiency when exposed to the chemical composition and heat often present in diesel fuel systems, particularly in generator applications that may run for extended periods.

Size and Practical Fit

Accurate dimensions are crucial for any replacement filter. The FS19764 has a total outside diameter of 106.93 mm (4.21 in) and a total height of 178.79 mm (7.039 in), which are the key external measurements for ensuring it fits within the allocated space on the generator or engine. The inside diameter of 16.76 mm (.66 in) relates to the internal sealing or mounting mechanism. Furthermore, the 10 mm inlet and outlet calibre is a direct specification for the fuel line connections, ensuring a proper seal and correct flow rate through the filter canula. Verifying these measurements against your existing filter or equipment manual is an essential pre-purchase step.

Uses and Placement

This filter is specified for use within diesel fuel systems, with a noted application scope covering automotive starting systems and generator sets. These are typically applications where fuel cleanliness directly impacts starting reliability, component wear, and overall operational efficiency. The filter's placement within the fuel line is downstream from the fuel tank and before the fuel injection pump or unit injectors, acting as a final defence against particulates.

Event or Professional Use

For professional or industrial settings such as backup power generation, construction sites, or agricultural machinery, maintaining clean fuel is non-negotiable for avoiding downtime. The FS19764, with its resistant filter paper and specified pressure/temperature ratings, is built for these demanding environments. Its role is to protect expensive fuel system components—like injectors and pumps—from abrasion and clogging caused by contaminants, which is a common cause of reduced performance or failure in diesel generators.

Everyday Home Use

For domestic users with a standby diesel generator for home power backup, this filter serves the same protective function on a smaller scale. Regular filter changes are a standard part of generator maintenance schedules. Using a correctly specified filter like the FS19764 helps ensure the generator starts reliably when needed, such as during a power outage, by safeguarding the fuel delivery system. The stated properties like high temperature resistance are relevant here, as generators can generate significant heat in their engine bays during operation.

Benefits and Buying Value

The value of the FS19764 diesel fuel filter lies in its role as a preventative maintenance item. By filtering contaminants, it contributes directly to the longevity and reliability of the larger system it serves. Its design features, such as the folding element and resistant materials, are focused on performing this single task effectively within its stated operational limits.

Reuse and Low Maintenance

The filter itself is a consumable item and is not designed for reuse or cleaning; it is replaced at recommended service intervals. Its value in low maintenance comes from preventing higher-cost maintenance issues. By trapping impurities, it helps avoid the need for cleaning or replacing more expensive downstream components like fuel injectors, which are far more costly and complex to service. Ensuring you use a filter that matches the original equipment specifications for dimensions and performance ratings is key to achieving this benefit.

Why Choose This Product

Choosing the FS19764 is appropriate when it is the specified replacement part for your particular generator set or engine model. The decision should be based on the concrete specifications provided: the FS19764 part number, the 10mm connection size, the precise dimensions (106.93 mm OD, 178.79 mm height), and the material properties (acid/alkali/high temperature resistant paper). These details ensure compatibility and correct function. It is a component selected for its technical fit and stated material capabilities, not for subjective qualities, making it a practical choice for system-specific fuel filtration needs.
