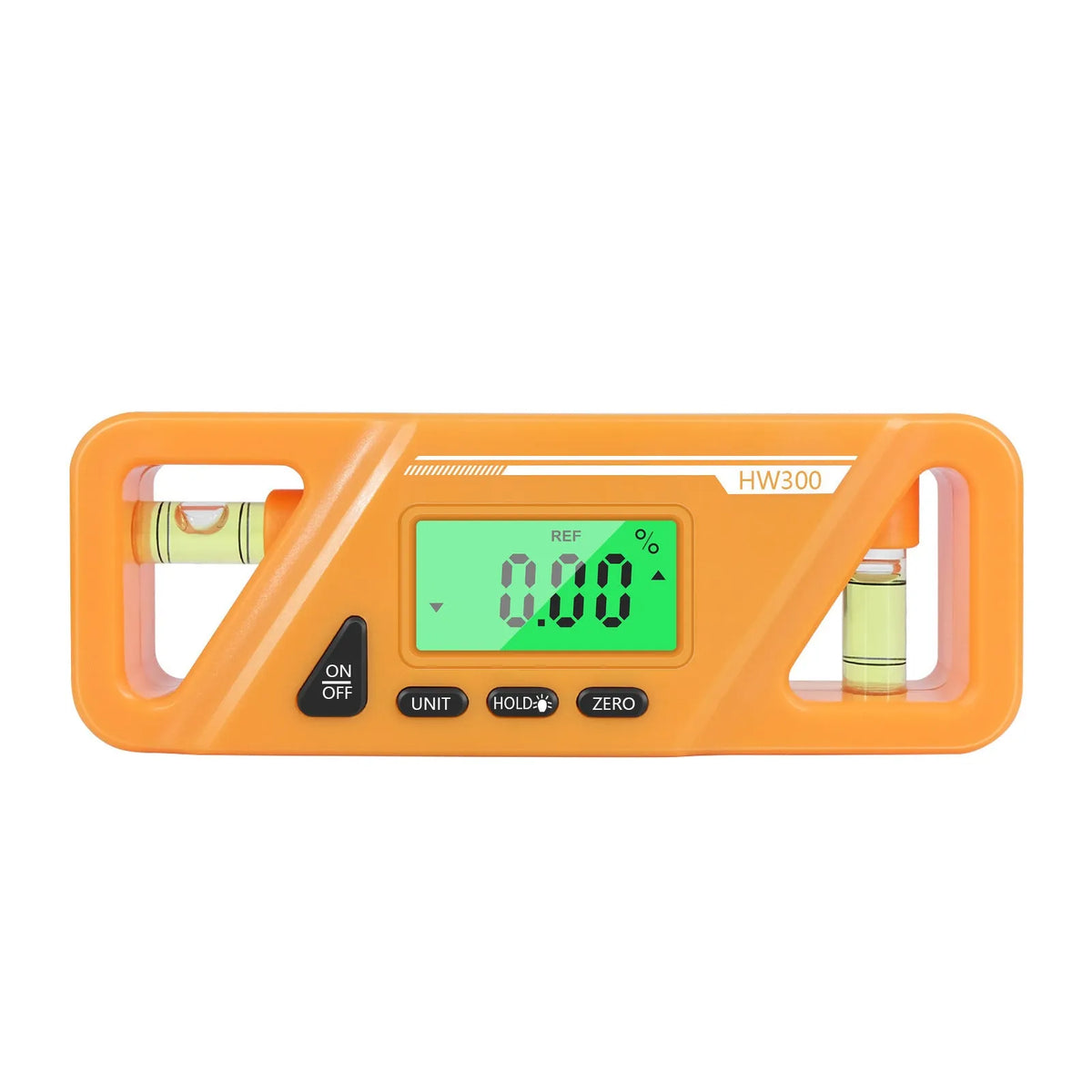

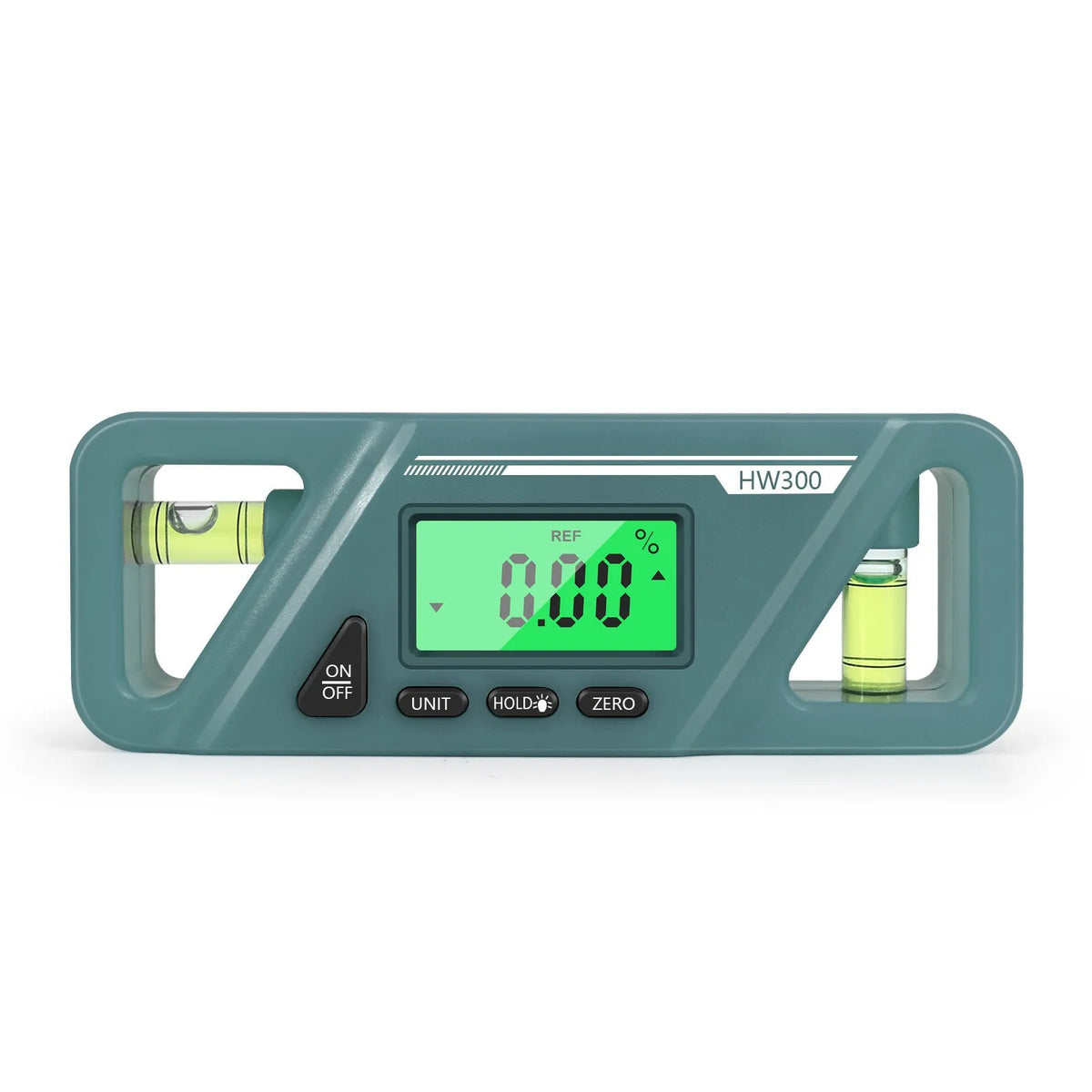

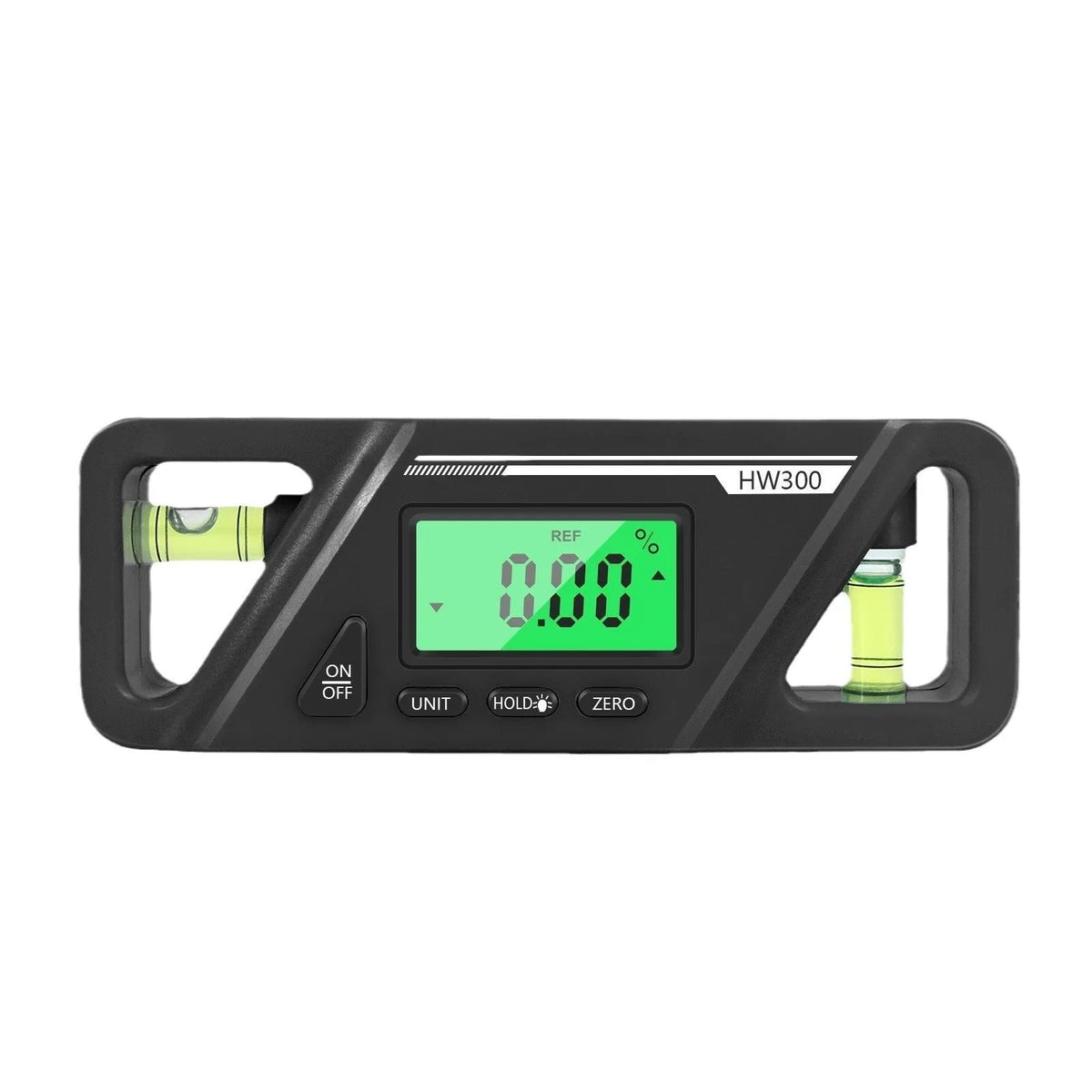

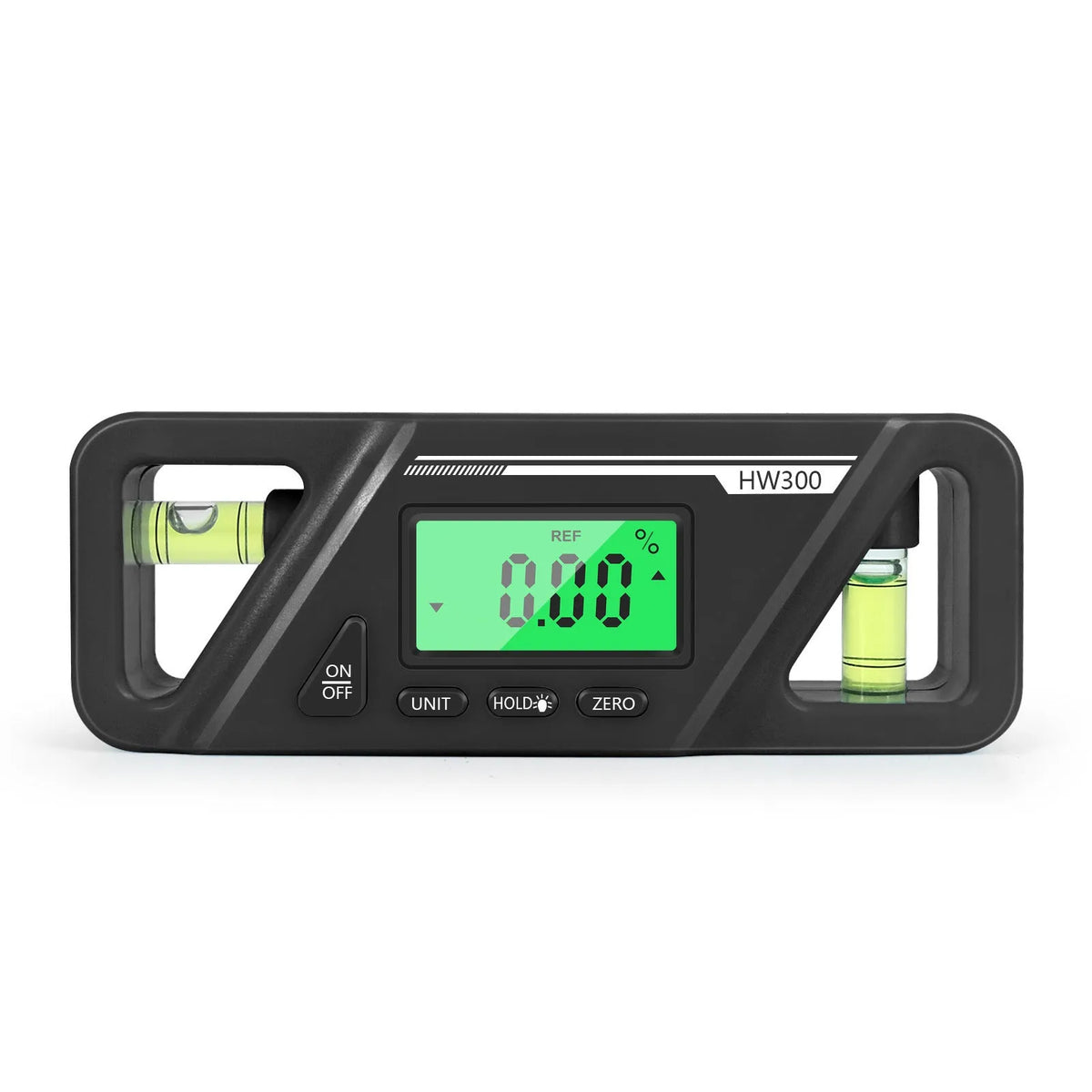

Magnetic Digital Inclinometer for Precise Workpiece Angle and Slope Measurement

This digital display inclinometer, also known as a level protractor or angle gauge, is designed for professionals and DIY enthusiasts who require accurate angular measurements. Its core function is to provide precise readings of angles and slopes directly on workpieces, which is essential for tasks in carpentry, metalworking, machinery alignment, and construction. The tool combines a digital readout with a practical magnetic base, moving beyond traditional spirit levels by offering numerical data and conversion functions. With a compact form factor, it integrates seamlessly into a toolkit, enabling complex measurements without bulky equipment.

Features and Construction

The inclinometer is built around its key features of magnetic adhesion, measurement conversion, and data locking. Its construction prioritises functionality for workshop and site use, providing reliable readings in various orientations.

Material and Build

The housing of the inclinometer is made from plastic ABS, a material chosen for its balance of lightweight properties and adequate rigidity. This construction keeps the net weight to just 56g without the battery, making it highly portable. The ABS plastic helps protect the internal digital components from everyday knocks and impacts encountered in a working environment, though specific impact ratings are not provided.

Size and Practical Fit

With dimensions of 115mm by 42mm by 22mm, the tool is designed for easy handling and storage. This portable size allows it to be used in confined spaces and makes it simple to use alongside other measuring tools like rulers, squares, or laser measures, effectively expanding the user's measurement range. The small size does not compromise its display, which is clear and designed for straightforward reading of the angle data.

Uses and Placement

The tool's primary use case is measuring the angle or slope of surfaces on workpieces. Its design supports both event-based professional tasks and more regular home workshop applications, offering versatility across different user needs.

Event or Professional Use

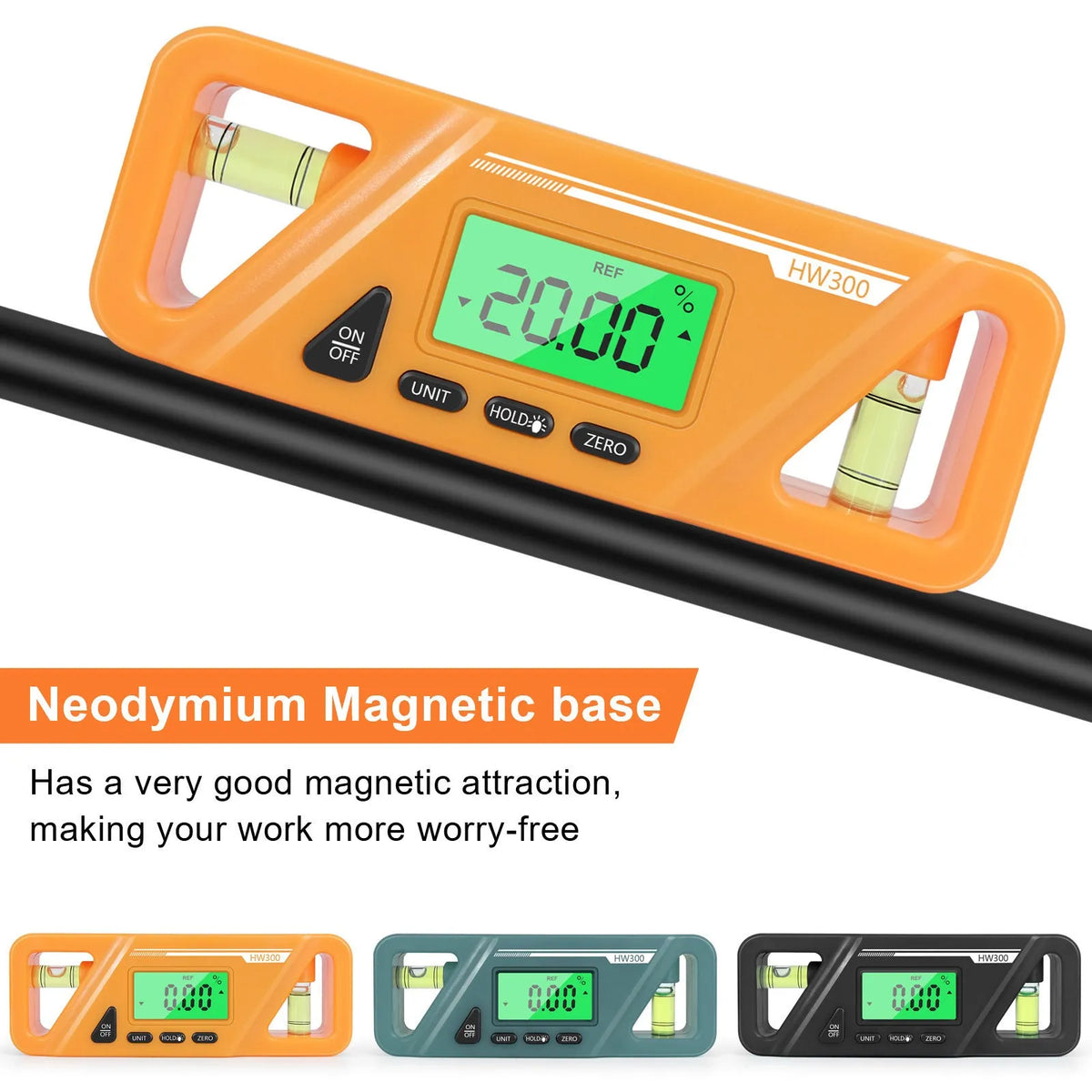

For professionals in machining, welding, or installation, the magnetic adsorption feature is particularly valuable. It allows the gauge to be attached securely to a metal workpiece, pipe, or machine part, providing a stable reference point for measurement without requiring a user to hold it in place. This is crucial for achieving repeatable accuracy, which is supported by its stated repeatability of 0.1°. The ability to convert between relative and absolute measurements means it can be zeroed on a reference surface, then used to measure deviations, or used to find an absolute angle from level.

Everyday Home Use

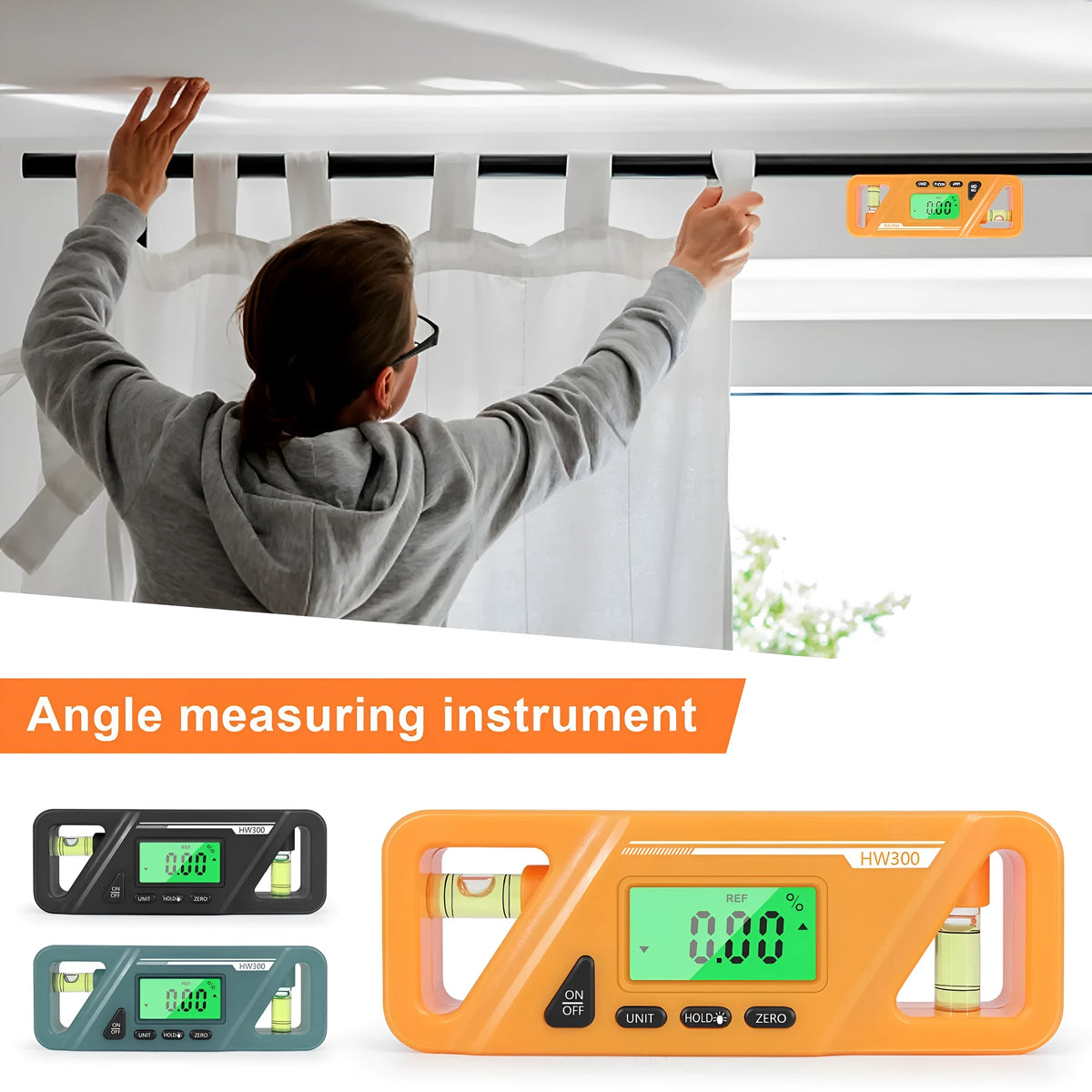

For DIY projects, the tool simplifies tasks like setting the correct angle for a saw cut, checking the slope of a drainage pipe, or ensuring a shelf is perfectly level. The data lock function is especially useful here, as it freezes the reading on the display, allowing the user to step away from the workpiece to record the measurement or make adjustments without losing the value. The angle and slope conversion function means it can provide a reading in the format most useful for the task at hand, whether that's degrees or a percentage gradient.

Benefits and Buying Value

The value of this inclinometer lies in its combination of precision, practicality, and portability. It addresses specific measurement challenges with features grounded in its technical specifications, offering a clear utility for its intended users.

Reuse and Low Maintenance

The tool is designed for repeated use across many projects. Its operation is straightforward, with the main consumable being the battery powering the digital display. No complex calibration routines are mentioned, suggesting a setup focused on ready-to-use functionality. Maintenance would involve basic care such as keeping the magnetic base and sensor faces clean for optimal adhesion and measurement.

Why Choose This Product

This digital inclinometer stands out for users who need more than a basic spirit level. Its key differentiators are the magnetic base for hands-free operation on metal surfaces and its digital precision, specified as ±0.2° accuracy with a fine 0.05° resolution for smaller angles. The conversion functions between measurement types add versatility that a single-purpose tool lacks. For anyone requiring reliable, repeatable angular data in a compact, easy-to-use format, this tool provides a directly applicable solution based on its stated capabilities.
