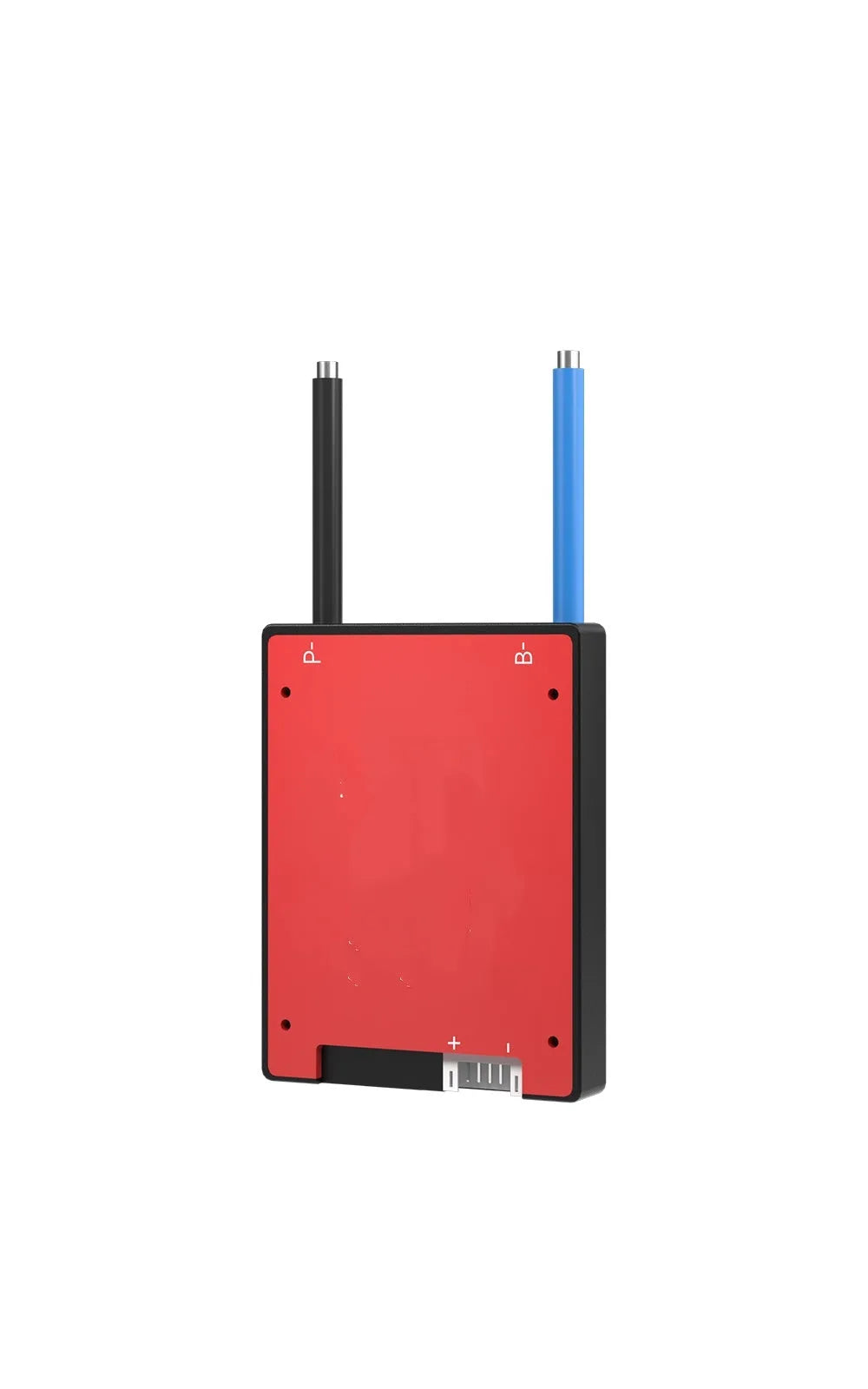

Dali 12V Lithium Iron Phosphate Battery Protection Board with Cell Balancing

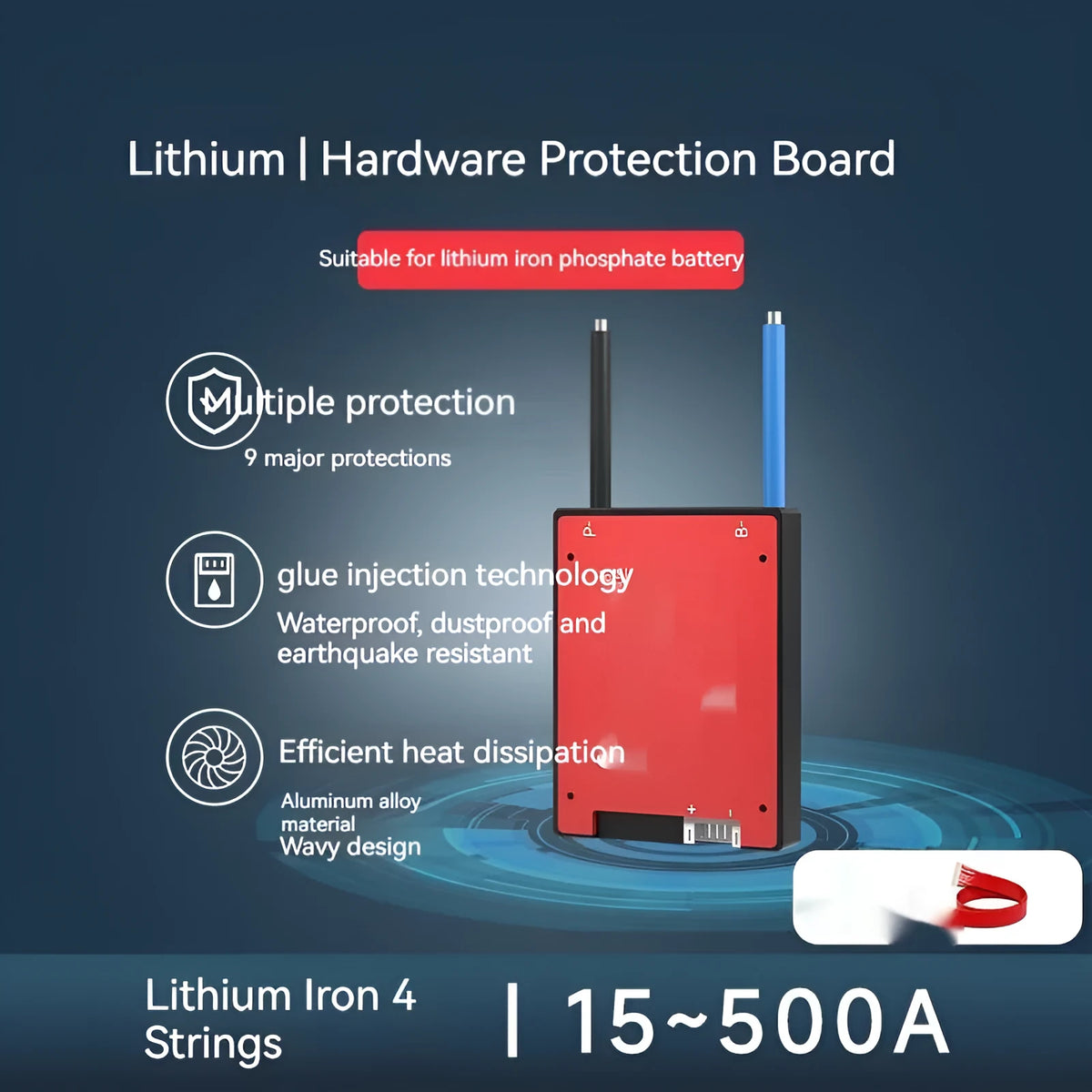

This Dali battery management system (BMS) is a crucial component for any 12V energy system built with four lithium iron phosphate (LiFePO4) cells in series. Its primary function is to protect your valuable battery investment from common hazards like over-charging, over-discharging, excessive current draw, and short circuits. Available in a comprehensive range of current capacities, from 15A for smaller setups to 500A for high-power applications, it allows you to select the precise level of protection needed for solar storage, caravan or motorhome power, marine electronics, or backup UPS systems. Every model includes passive cell balancing, a key feature that helps maintain voltage harmony across all four cells to optimise overall pack health and capacity over time.

Features and Construction

The board's construction is centred around a robust printed circuit board (PCB) populated with the necessary electronic components to monitor voltage and current. The core protection mechanisms guard against conditions that can damage LiFePO4 cells or create safety risks.

Material and Build

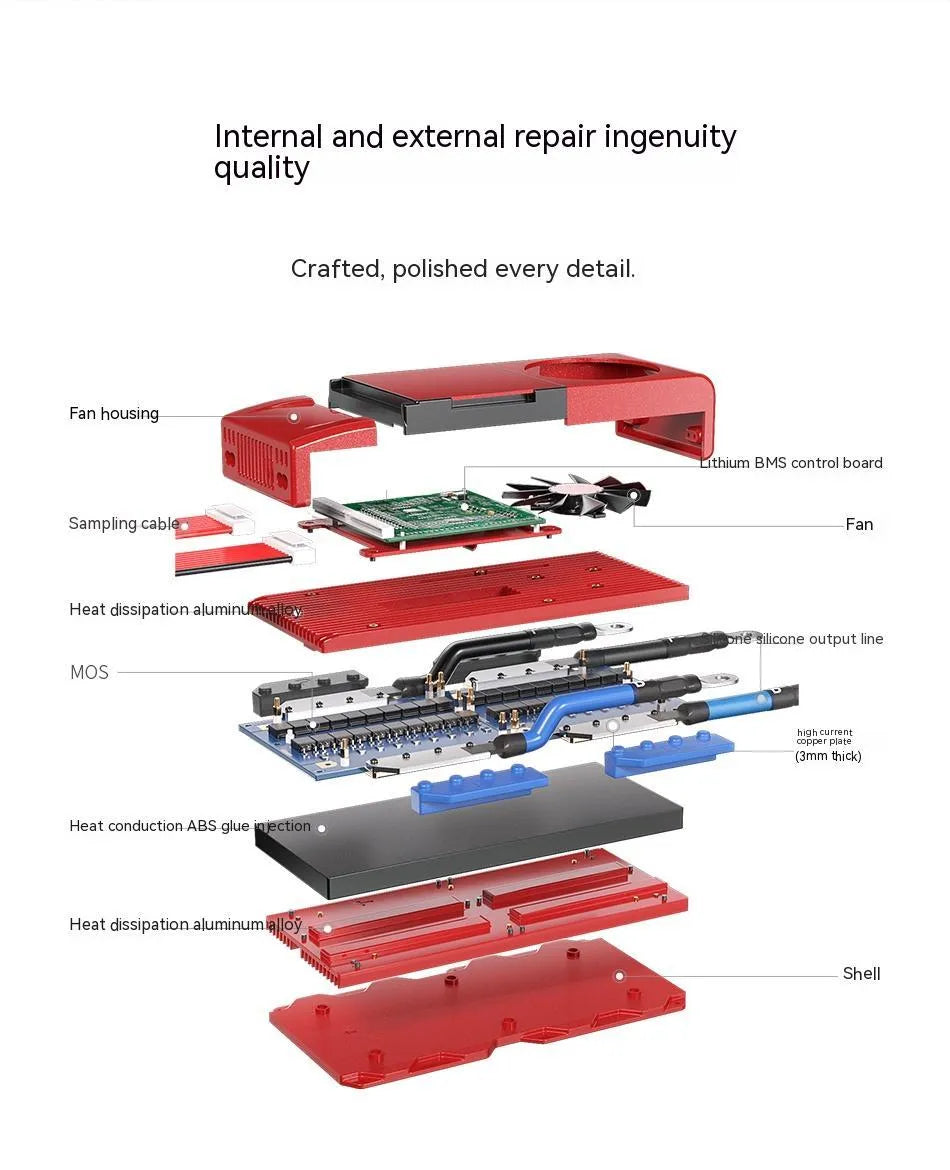

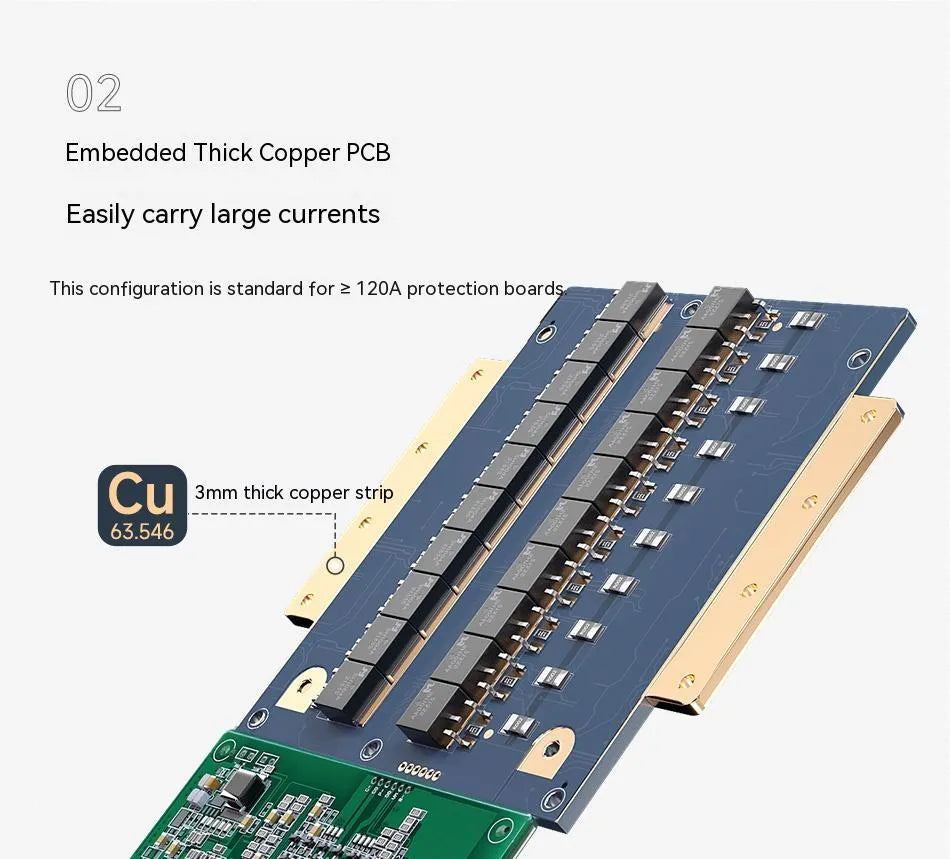

The foundation is a standard fibreglass PCB. Key components include MOSFETs that handle the high current switching for charge and discharge control, alongside precision resistors used for the passive balancing circuit. For models rated 80A and above, an integrated cooling fan is attached to an aluminium heatsink. This active cooling is essential for dissipating heat generated during high-current operation, ensuring the BMS operates reliably within its specified temperature range. The fan is housed in a durable plastic or metal casing.

Size and Practical Fit

While exact physical dimensions are not specified, battery protection boards of this type are typically designed to be compact to fit within standard battery enclosures or project boxes. The same-port design is a significant practical advantage, as it uses common terminals for both the charging input and the load output. This simplifies installation by reducing the number of wiring connections compared to separate-port designs, making it a more straightforward choice for DIY enthusiasts and installers.

Uses and Placement

The application of this BMS is defined by its 12V output and its compatibility with the stable, long-life chemistry of lithium iron phosphate. It is the safeguard between your power source and your electrical devices.

Event or Professional Use

In professional or demanding mobile environments, such as food trucks, mobile medical units, or off-grid telecommunications, reliable power is non-negotiable. A BMS rated for high continuous current (like the 200A, 300A, or 500A models with fans) ensures the battery can support heavy-duty inverters and equipment without risk of the protection cutting out due to overheating. The balancing function is critical here, as it helps maintain full available capacity from professional-grade battery packs that experience regular deep cycles.

Everyday Home Use

For domestic renewable energy systems, such as a home solar storage setup, or for powering a caravan's lights, fridge, and entertainment system, a appropriately rated BMS (e.g., 50A, 80A, or 100A) provides peace of mind. It automatically prevents the battery from being drained to a damagingly low voltage or from being charged by a faulty solar controller. The balancing feature works in the background during charging cycles, addressing the slight variations in self-discharge that naturally occur between individual cells, which helps preserve the overall health of the home battery investment.

Benefits and Buying Value

The value of this product lies in its role as a protective intermediary, extending battery life and enhancing system safety. Selecting the correct model is the key to realising this value.

Reuse and Low Maintenance

A well-protected LiFePO4 battery pack can deliver thousands of charge cycles. This BMS contributes directly to that longevity by preventing the abuse that shortens battery life. Unlike some complex active balancing systems, the passive balancing used here is simple, reliable, and requires no user intervention or maintenance. The inclusion of a fan on higher-power models is a pre-emptive design choice to manage heat, a primary cause of electronic component failure, thereby supporting the board's own long-term reliability.

Why Choose This Product

Choosing this Dali BMS involves matching its specifications to your project's requirements. The wide selection of current ratings allows for precise application, preventing the need to overspend on an overly powerful board or risk an underrated one. The clear option between standard and fan-cooled models lets you address thermal management needs directly. The inclusion of balancing on all variants, a feature not always present on basic protection boards, adds tangible value by actively promoting balanced cell voltages, which is fundamental to maximising the performance and lifespan of a multi-cell battery pack.
