10-Inch Locking Contour Gauge for Precise Profile Transfer and Measurement

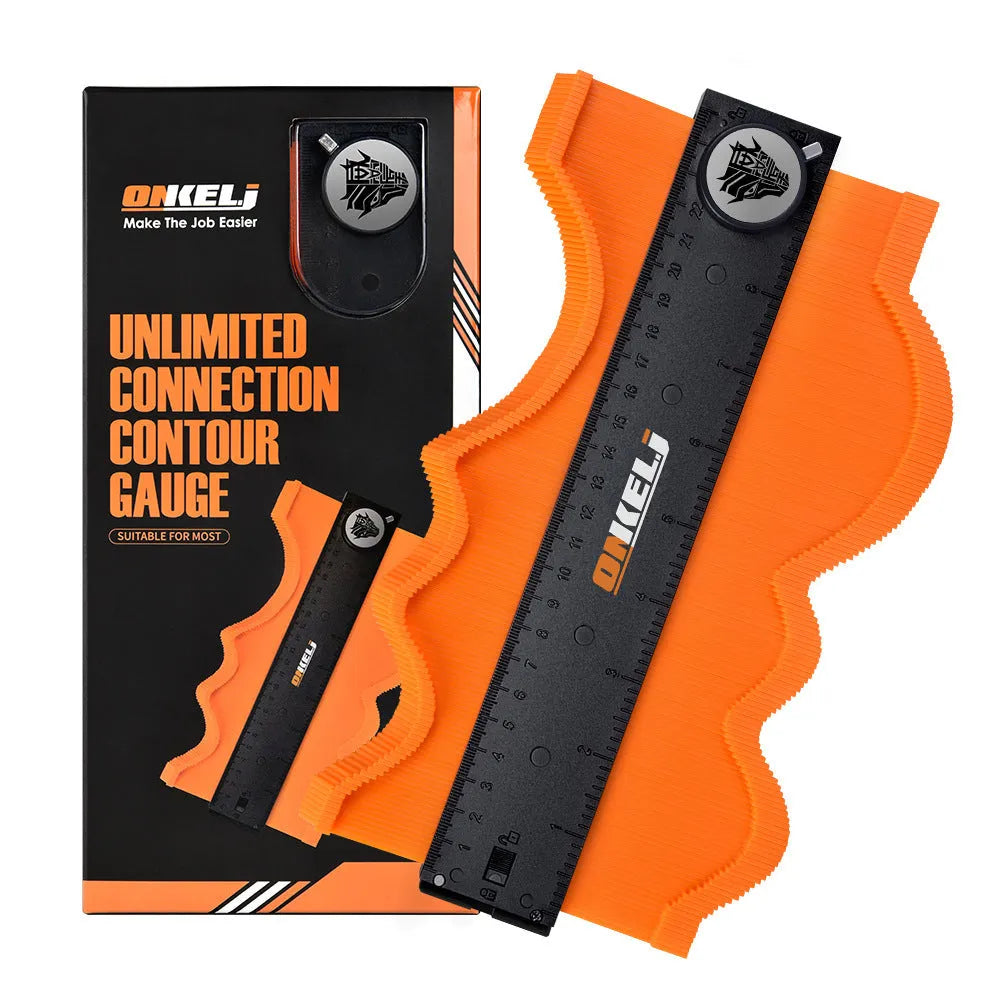

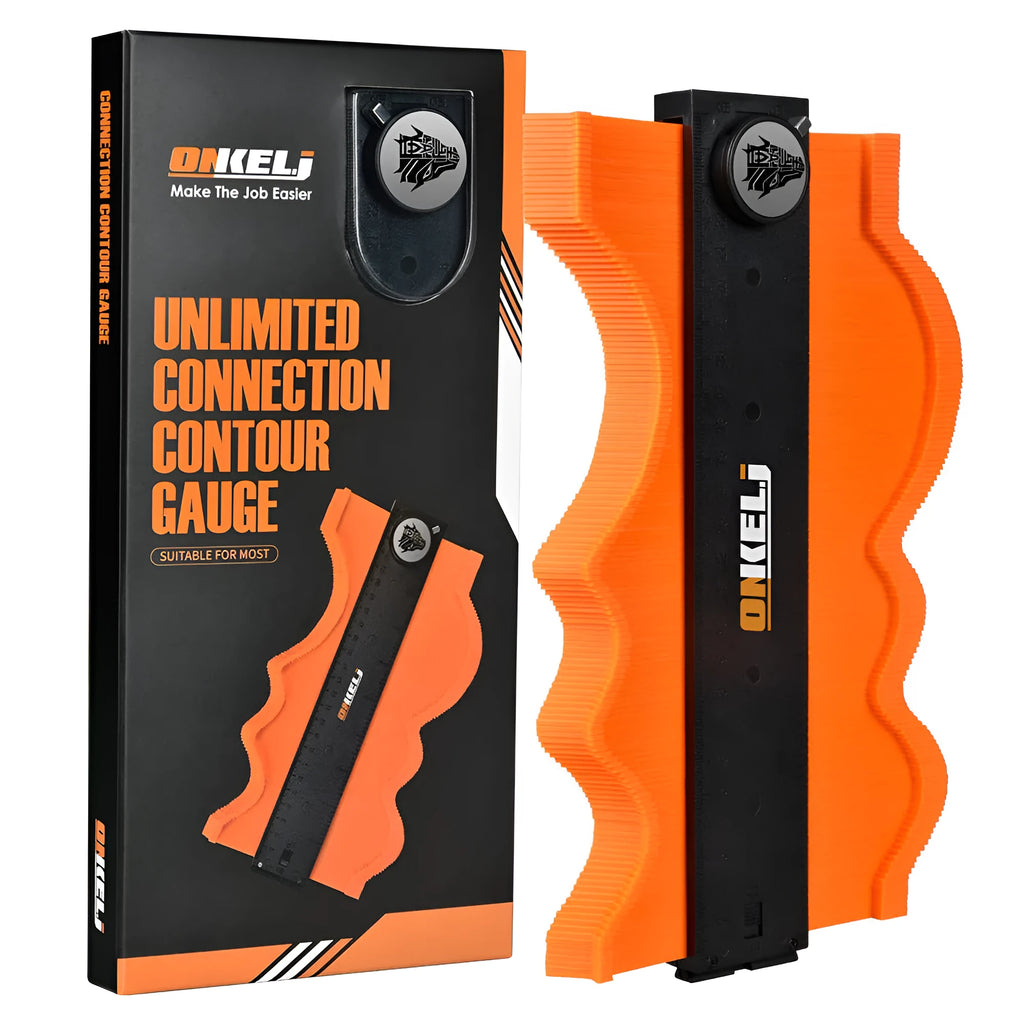

Copying irregular shapes for skirting boards, tiles, or decorative mouldings requires a tool that can adapt to complex profiles with accuracy. This contour gauge, featuring an infinite stitching design and a locking mechanism, is built to capture and hold the exact outline of any object it is pressed against. With a construction combining ABS plastic and stainless steel, and a stated accuracy of 1mm, it provides a practical solution for DIY enthusiasts, carpenters, and installers who need reliable shape replication without guesswork. Its 265mm x 130mm x 27mm frame houses rows of adjustable pins that conform to a shape's contours, which are then secured in place for easy tracing onto your material.

Features and Construction

This tool's design centres on its core functionality: capturing a variable profile and locking it for transfer. The construction details and specific features directly support this practical use in workshop and home improvement settings.

Material and Build

The gauge utilises two primary materials: ABS plastic for the main body and stainless steel for the pins and likely internal components. The ABS plastic provides a lightweight and durable housing that is resistant to impacts from typical workshop use. The stainless steel pins offer the necessary strength to maintain their position under pressure and resist corrosion, which is important for a tool that may be used in various environments. This material combination contributes to a functional build without unsupported claims about premium finish or extended lifespan.

Size and Practical Fit

The tool has specific external dimensions of 265mm in length, 130mm in width, and 27mm in thickness. Its 10-inch (approximately 254mm) working length of infinite stitching pins defines the maximum profile width it can capture in a single operation. The 27mm thickness indicates the depth of the pin array, which limits the depth of the recess or protrusion it can measure. These concrete measurements allow you to assess if the gauge is suitable for your typical project sizes before purchase.

Uses and Placement

The contour gauge serves a clear purpose in scenarios requiring precise shape duplication. Its application spans from professional fitting jobs to common household DIY tasks, making it a versatile addition to a toolkit.

Event or Professional Use

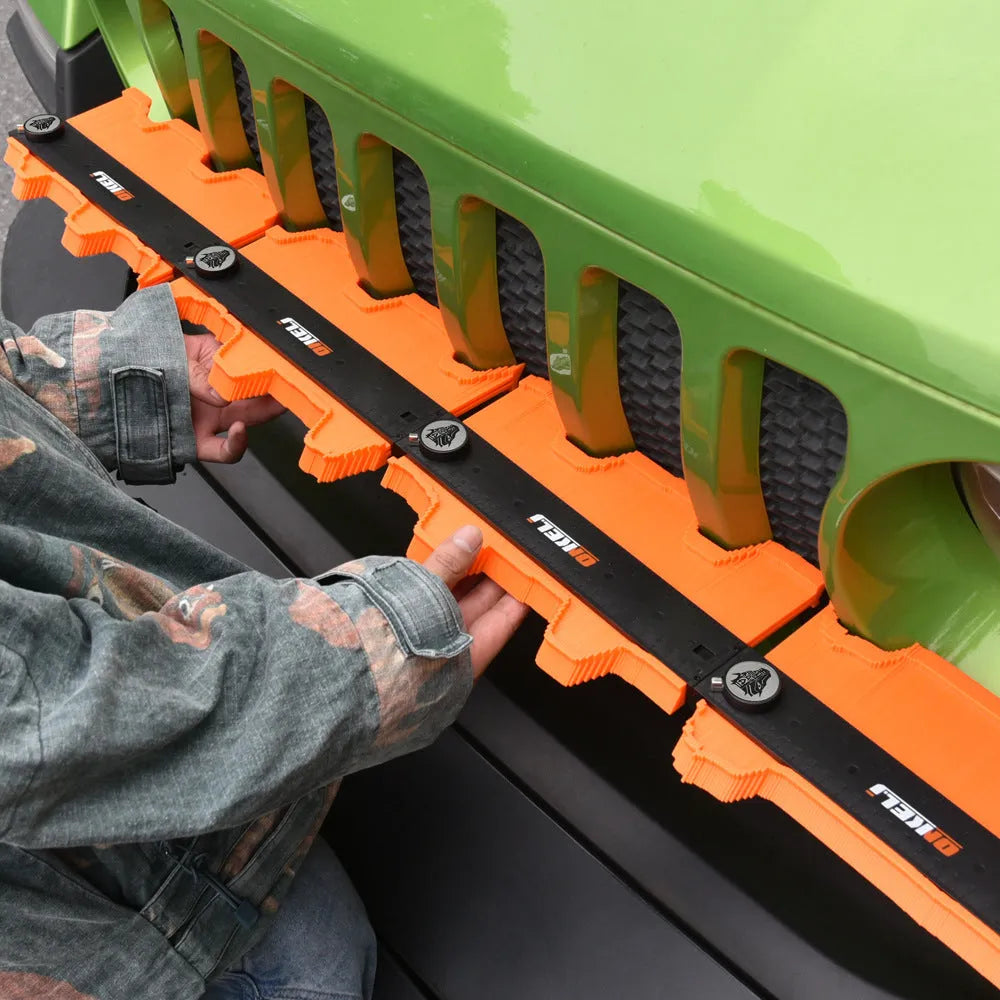

For tradespeople such as carpet fitters, kitchen installers, or tilers, this tool aids in creating precise cuts for materials that must fit around existing architectural features. The locking mechanism is particularly valuable here, as it allows a profile to be captured in one location and then carried to the cutting area without distortion. The 1mm accuracy specification provides a quantifiable benchmark for the level of precision achievable, which is critical for professional results where tight tolerances are needed.

Everyday Home Use

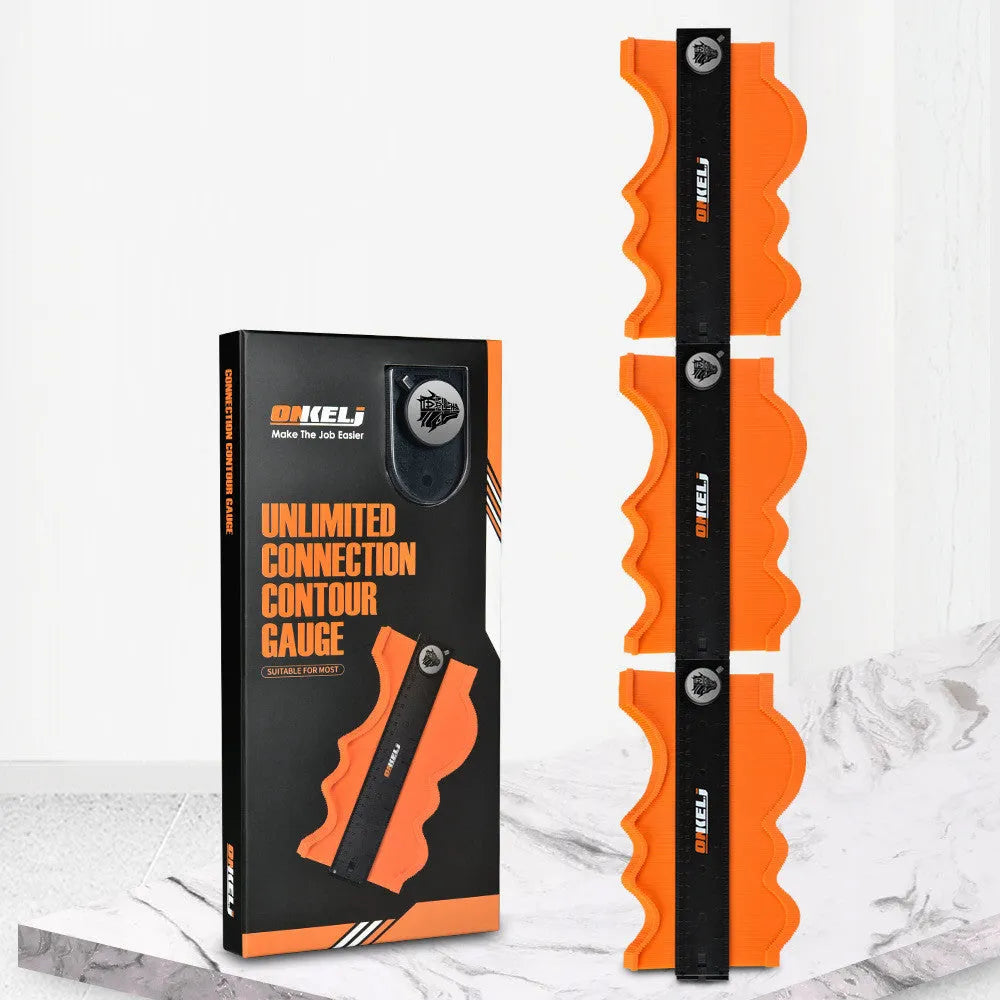

In a home DIY context, the gauge is useful for tasks like cutting laminate flooring to fit around door frames, shaping shelving to match uneven walls, or crafting custom trim pieces. The infinite stitching design means it can handle both simple curves and highly complex, multi-faceted profiles often encountered in older properties. Its operation requires no technical skill—simply press, lock, and trace—making it accessible for users of all experience levels tackling renovation or craft projects.

Benefits and Buying Value

The value of this product lies in its specific functionality, reusability, and the practical problems it addresses directly. It offers a focused alternative to improvised measuring methods that often lead to material waste and imprecise fits.

Reuse and Low Maintenance

As a mechanical tool with no electronic parts, it is designed for repeated use across many projects. The stainless steel pins and ABS body require minimal maintenance; simply keeping them free of built-up debris ensures smooth operation. Its durability is inferred from its stated materials, not from invented longevity claims. This reusability provides long-term value by reducing the need for multiple specialised measuring tools for different profile types.

Why Choose This Product

Choosing this contour gauge is justified by its concrete specifications: the 10-inch working width, the 1mm accuracy, the locking mechanism, and its specific material composition. It provides a measurable and reliable method for profile transfer. Compared to generic or improvised methods, it offers a dedicated, repeatable solution that can improve accuracy and save time on fitting tasks. The value comes from its focused design for a specific problem, supported by the available dimensional and material data.
