35mm Hinge Punch Locator Tool with Adjustable Margin Settings for Cabinet Door Installation

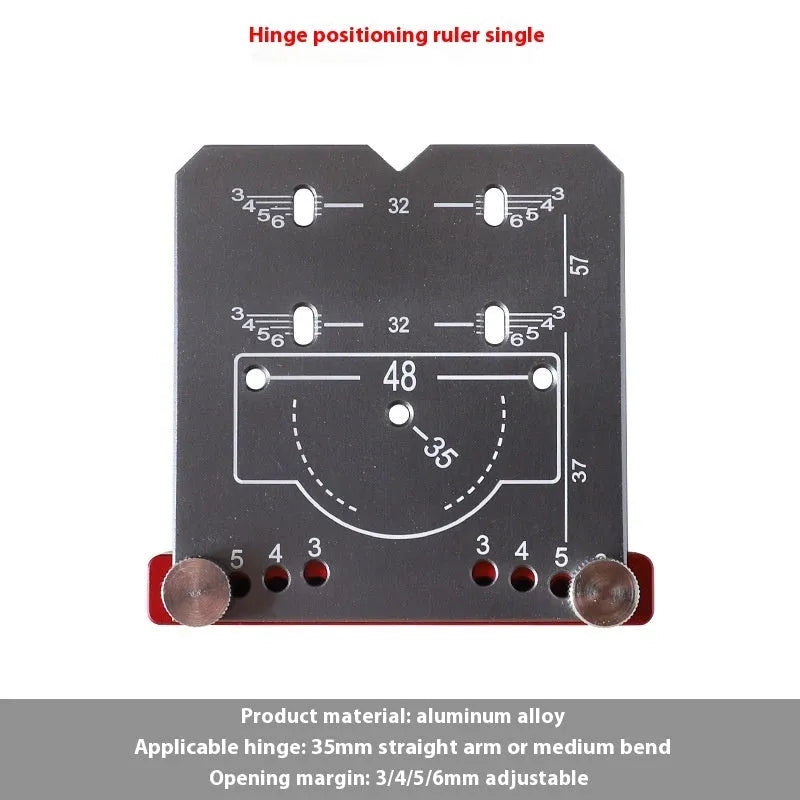

This hinge locating ruler addresses the common woodworking challenge of achieving consistent and accurate hinge placement during cabinet door and wardrobe assembly. Designed specifically for 35mm extended arm and middle bend hinges, the tool provides a reliable method for marking hole positions without complex measurements or calculations. Its adjustable margin system offers four preset options to accommodate different installation requirements, while the aluminium alloy construction ensures durability through repeated use in home DIY projects. The red anodised finish enhances visibility during operation, making it easier to position correctly against various wood surfaces.

Features and Construction

The hinge punch locator combines precision engineering with practical design elements suited to household woodworking applications. Each component has been selected for its specific functional role in the hinge marking process, from the main locating ruler body to the specialised cutting blade. The tool's construction focuses on delivering consistent results while maintaining ease of use for both occasional DIY enthusiasts and regular home improvement projects.

Material and Build

The main body of the hinge locating ruler is constructed from aluminium alloy, chosen for its balance of lightweight properties and structural integrity. This material selection allows for comfortable handling during extended use while resisting deformation under normal woodworking pressures. The surface features a red anodised finish that serves dual purposes: providing corrosion resistance against workshop environments and enhancing visual contrast against wood surfaces for better positioning accuracy. The hard alloy blade tapper component undergoes specific high-temperature heat treatment during manufacturing, resulting in increased hardness properties and improved wear resistance for repeated marking operations.

Size and Practical Fit

The tool is dimensioned specifically for compatibility with 35mm extended arm and middle bend hinges, which represent common sizes in cabinet door and wardrobe installations. This specialised sizing ensures proper alignment with standard hinge hardware, eliminating guesswork during the marking process. The adjustable margin mechanism offers four distinct settings at 3mm, 4mm, 5mm, and 6mm intervals, allowing users to select the appropriate offset based on their specific installation requirements. These preset positions maintain consistency across multiple hinge placements, whether working on a single cabinet door or multiple wardrobe units.

Uses and Placement

This hinge locating tool finds application in various household installation scenarios where accurate hinge positioning contributes to proper door function and alignment. Its design focuses on simplifying what can often be a frustrating aspect of cabinet and wardrobe assembly, particularly for those without specialised woodworking experience. The tool's operation requires minimal setup while delivering professional-looking results suitable for both visible and concealed hinge installations.

Event or Professional Use

While primarily designed for household applications, the hinge punch locator can support small-scale professional projects where consistent hinge placement across multiple units is required. The adjustable margin settings allow for standardisation of installation parameters, which proves valuable when fitting out multiple cabinets or wardrobe systems with matching hardware. The hard alloy blade tapper maintains its cutting performance through extended use, making it suitable for batch operations where efficiency matters alongside accuracy. The tool's simple operation reduces training requirements for workshop assistants or installation teams working on similar projects.

Everyday Home Use

For home DIY enthusiasts tackling cabinet door installation or wardrobe assembly, this hinge locating ruler eliminates much of the measuring and marking complexity associated with hinge placement. The tool guides users through the process with preset margin options that accommodate different design preferences, from flush installations to those requiring specific clearances. Its operation requires only basic woodworking knowledge, making it accessible for occasional users while still providing results that enhance the finished appearance of furniture projects. The compact design stores easily in a toolbox between uses.

Benefits and Buying Value

The hinge punch locator delivers practical advantages through its combination of specialised design elements and material choices. These benefits extend beyond the immediate marking function to include aspects of tool longevity and project consistency that contribute to overall value. The product addresses specific pain points in hinge installation while maintaining straightforward operation that doesn't require advanced skills or additional equipment.

Reuse and Low Maintenance

The aluminium alloy construction and anodised finish provide inherent resistance to workshop wear, allowing the hinge locating ruler to maintain its accuracy through multiple projects. Unlike disposable marking methods, this tool offers repeated use without degradation of its core functions. The hard alloy blade tapper benefits from heat treatment that enhances its durability, reducing the need for frequent replacement components. Maintenance requirements remain minimal, typically involving only basic cleaning to remove wood dust or debris that might accumulate during use.

Why Choose This Product

This hinge punch locator stands out for its specific compatibility with 35mm hinge systems and its adjustable margin settings that accommodate different installation requirements. The combination of aluminium alloy construction with a specialised hard alloy blade tapper creates a balanced tool that performs reliably while resisting workshop wear. For those undertaking cabinet door or wardrobe projects, it provides a dedicated solution that simplifies what can be a challenging aspect of furniture assembly. The tool's design focuses on delivering consistent results without requiring extensive woodworking experience or additional measuring devices.
